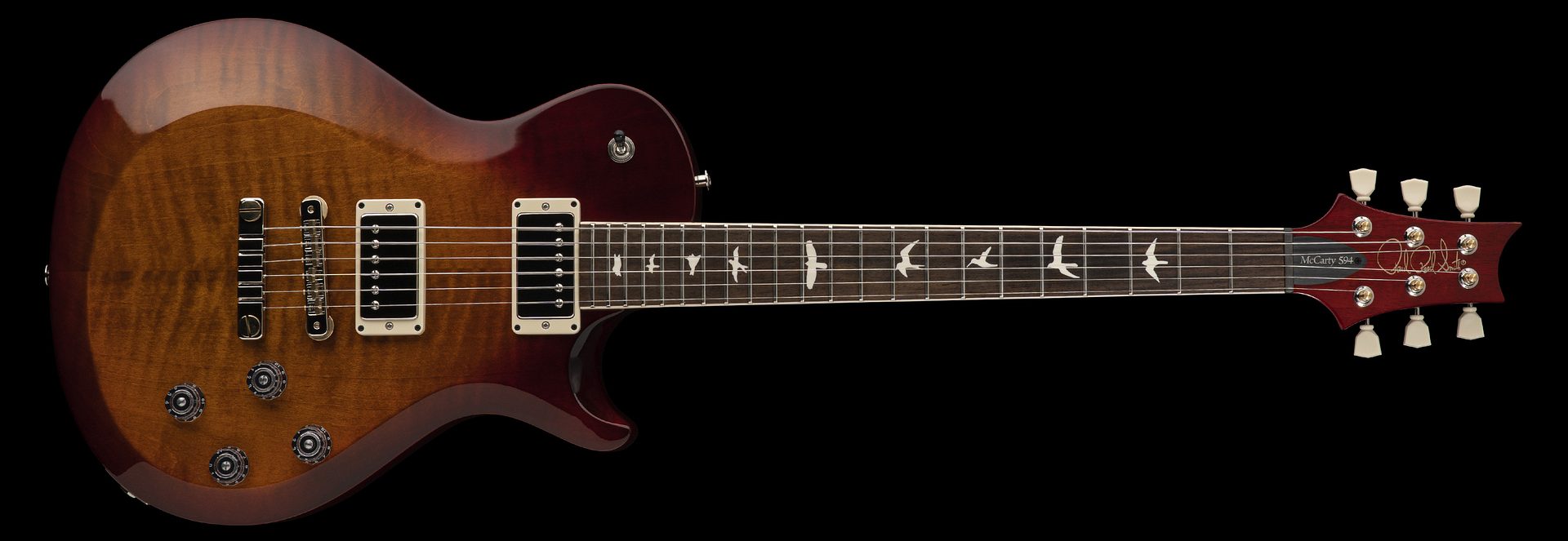

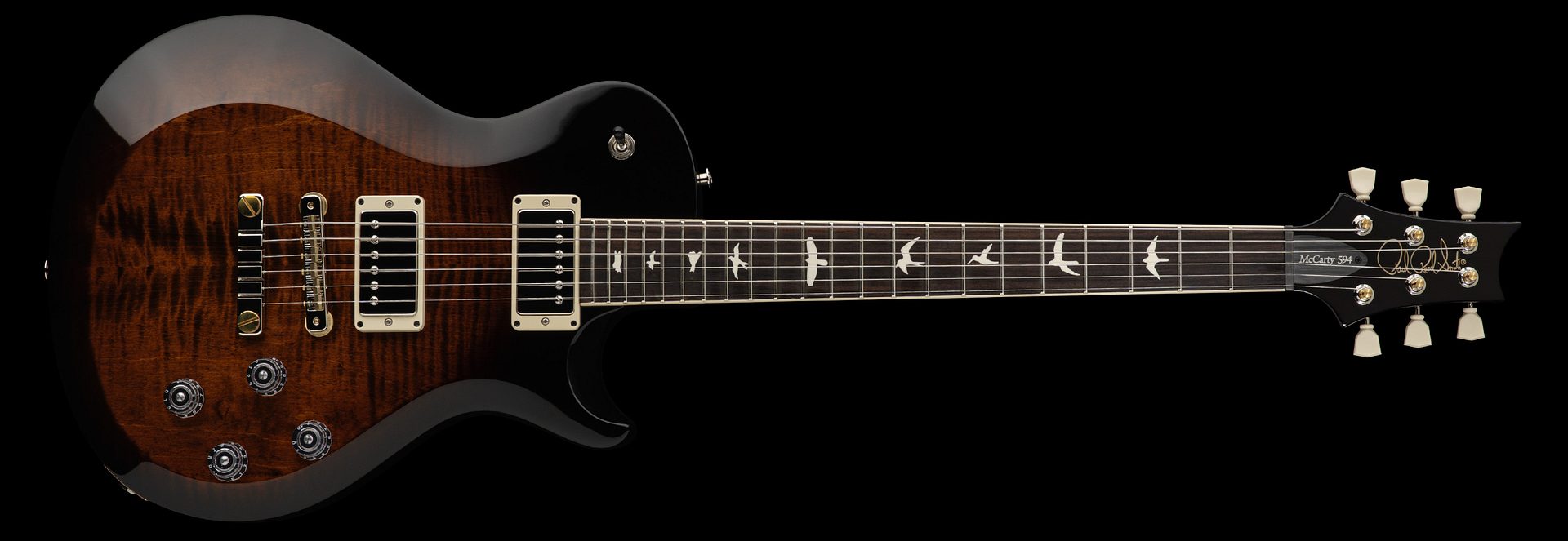

S2 McCarty 594 Singlecut
Recreating Vintage
The S2 McCarty 594 Singlecut delivers vintage appointments with the precision of PRS’s modern manufacturing techniques and trusted craftsmanship. Whether you are looking for authentic humbucking tones or nuanced, sweet single-coil sounds, the S2 McCarty 594 Singlecut can seamlessly master both sonic territories thanks to its 58/15 LT “S” pickups and dual volume and push/pull tone controls.
The warm, familiar tone of the S2 McCarty 594 Singlecut is further supported by its construction specifications and design. Featuring a bound 22-fret Pattern Vintage neck and slightly thicker back for more sustain, the S2 McCarty 594 Singlecut feels and sounds like a guitar you’ve been playing forever. It plays in tune, stays in tune, and is intonated the entire length of the neck. A zinc two-piece bridge and vintage-style tuners anchor this guitar and stay true to the promise of the McCarty family.
Designed to capture the heart of the McCarty family of instruments and stay true to the S2 Series spirit, the S2 McCarty 594 Singlecut recreates the essence of vintage.
Featured Specifications

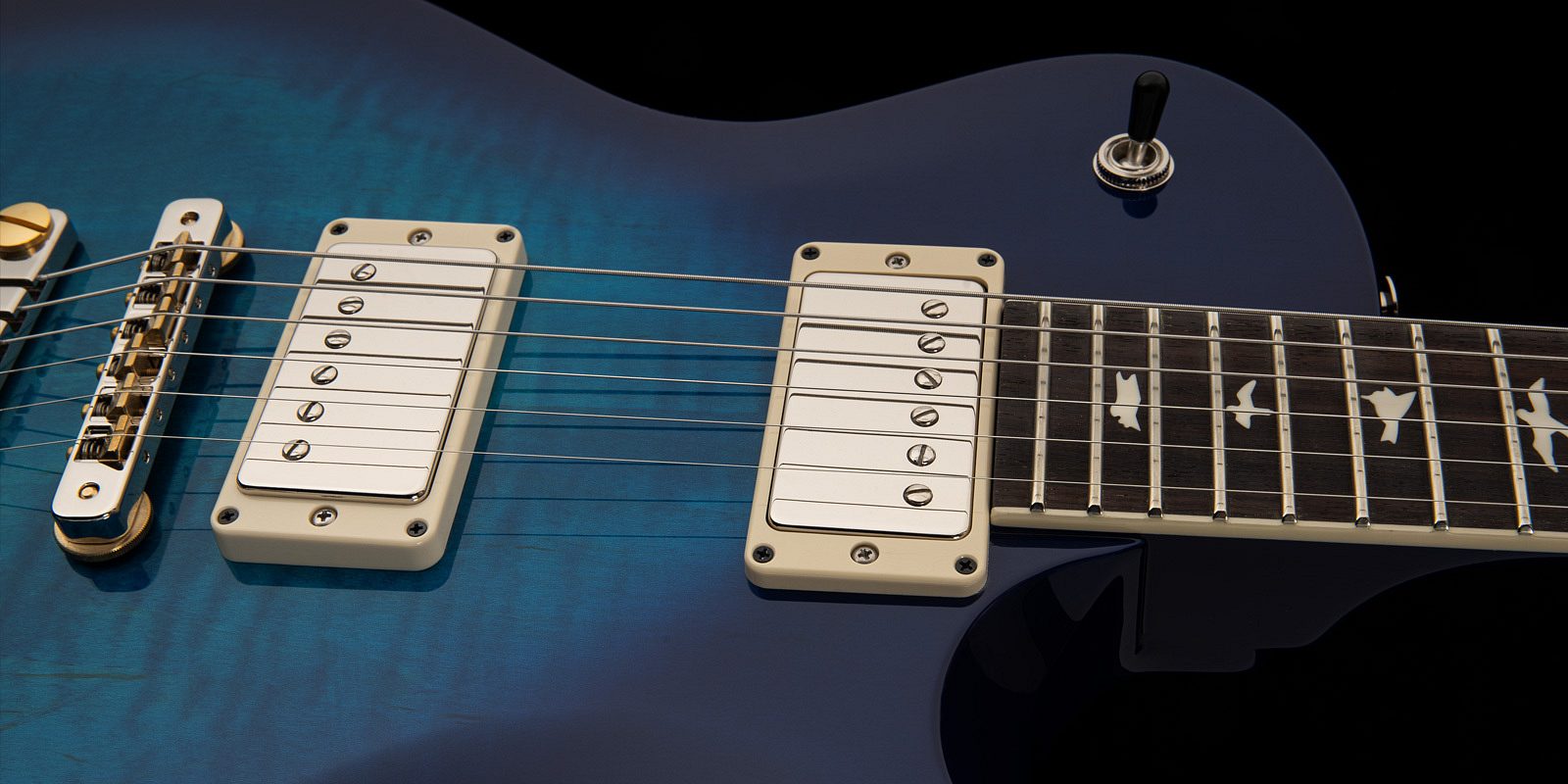

PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.

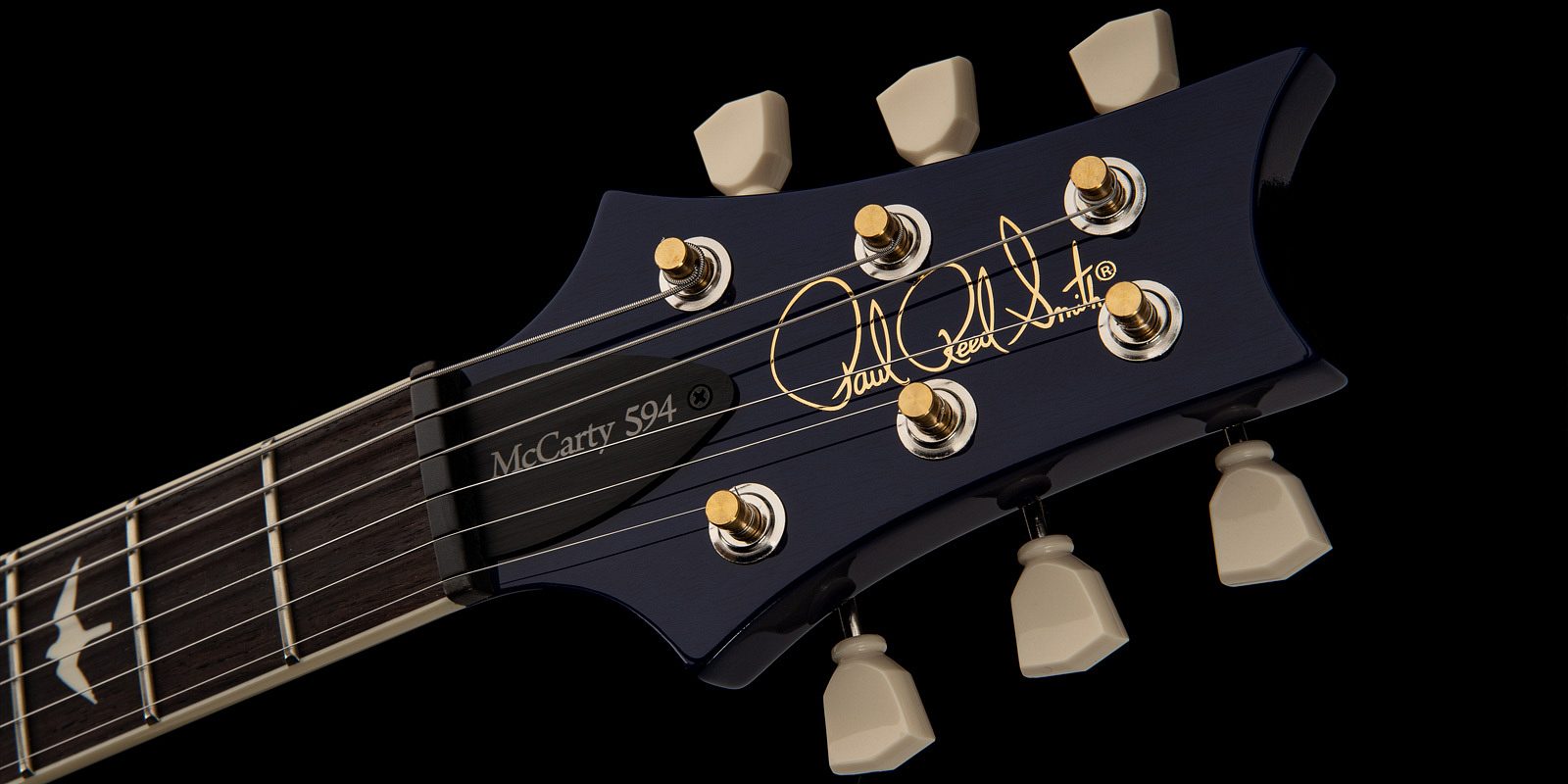

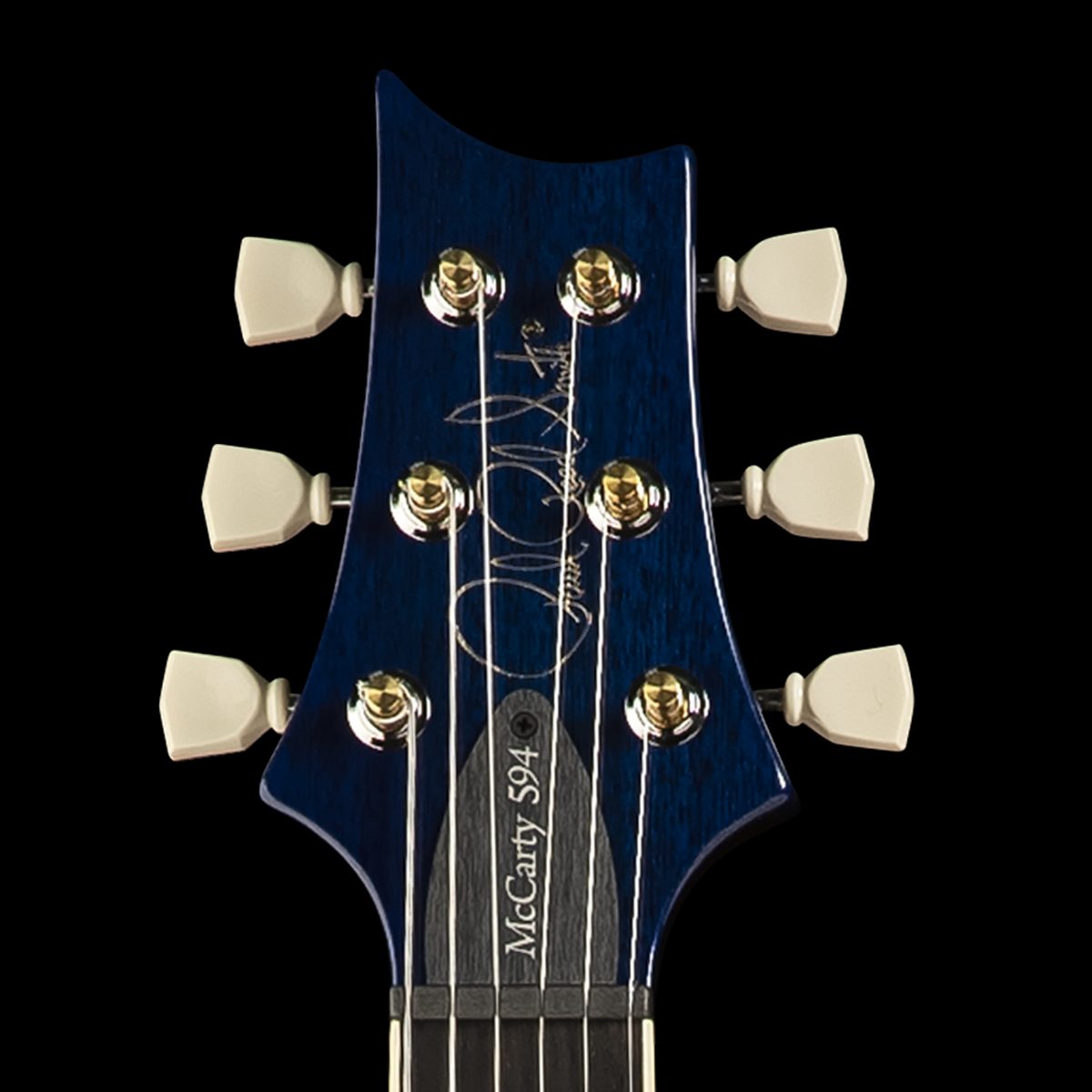

Vintage-Style Tuners
Traditional closed-back tuners engineered to promote resonance.

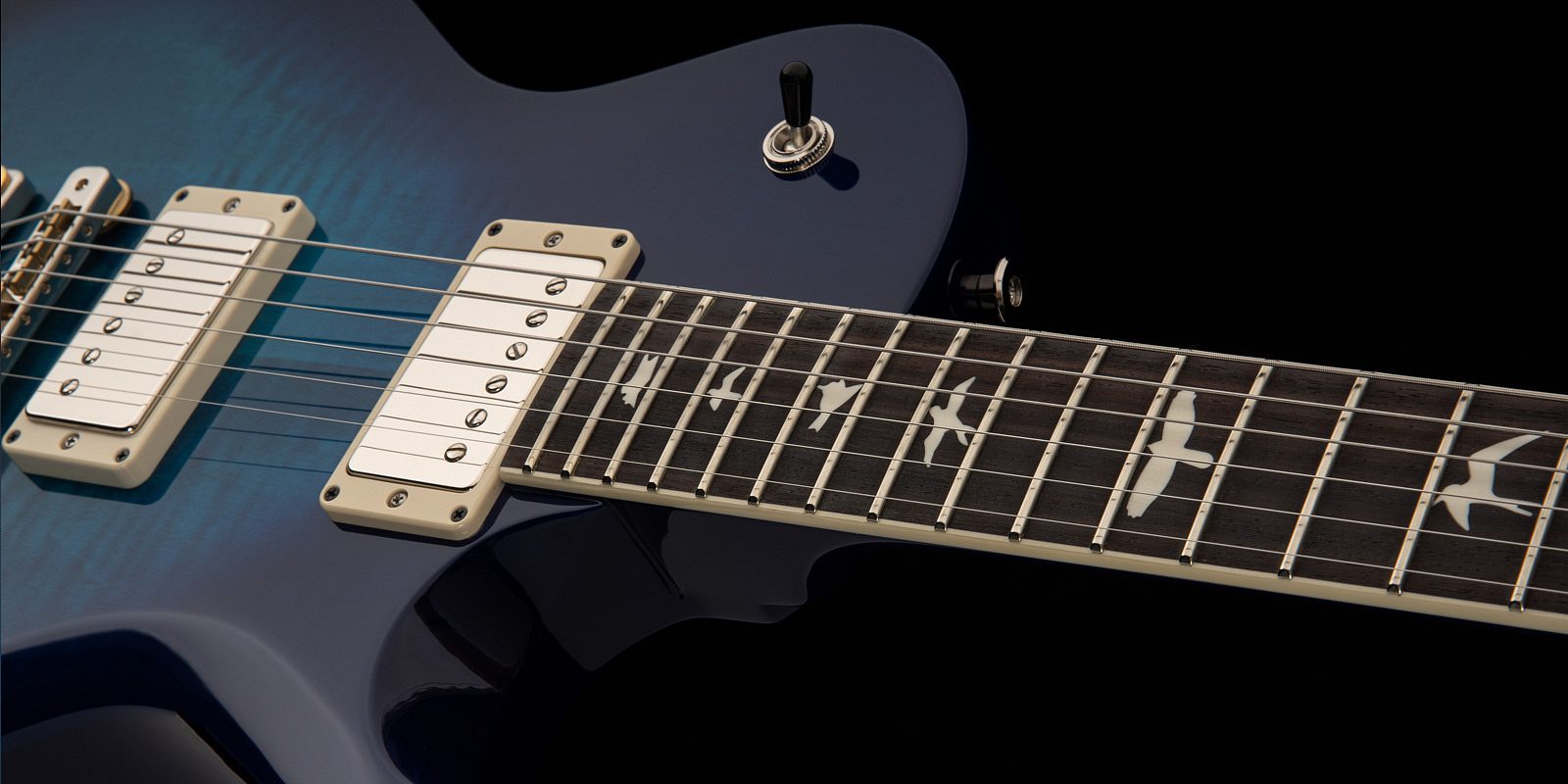

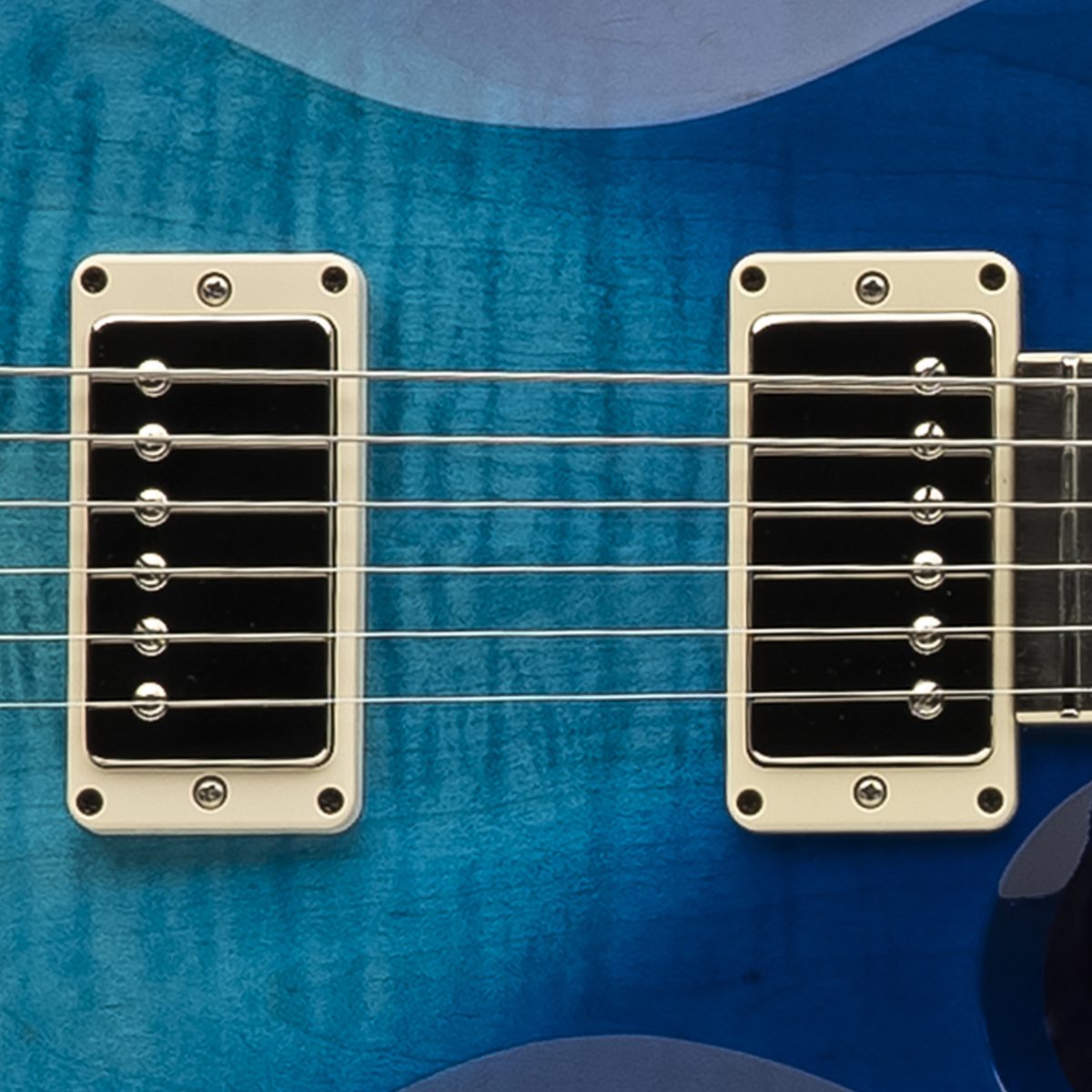

PRS 58/15 LT “S”
“Low turn” pickups with vintage warmth and welcome clarity, designed to PRS’s specifications.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Maple |
| Back Wood | Mahogany |
| Top Carve | Asymmetric Bevel |
| Neck | |
| Number of Frets | 22 |
| Scale Length | 24.594” |
| Neck Wood | Mahogany |
| Neck Construction | Scarfed |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Vintage |
| Neck Depth at the 1/2 Fret | 7/8" |
| Neck Depth at the 12 1/2 Fret | 63/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood w/ Faux Bone Binding |
| Fretboard Radius | 10" |
| Fretboard Inlay | Birds |
| Headstock Logo | Signature, Decal |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Finish | |
| Finish Type | High-Gloss Nitro |
| Hardware | |
| Bridge | PRS Two-Piece |
| Tuners | Vintage-Style |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "McCarty 594" |
| Electronics | |
| Treble Pickup | 58/15 LT "S" |
| Bass Pickup | 58/15 LT "S" |
| Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch on Upper Bout |
| Additional Info | |
| Strings | PRS Signature 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Gig Bag |

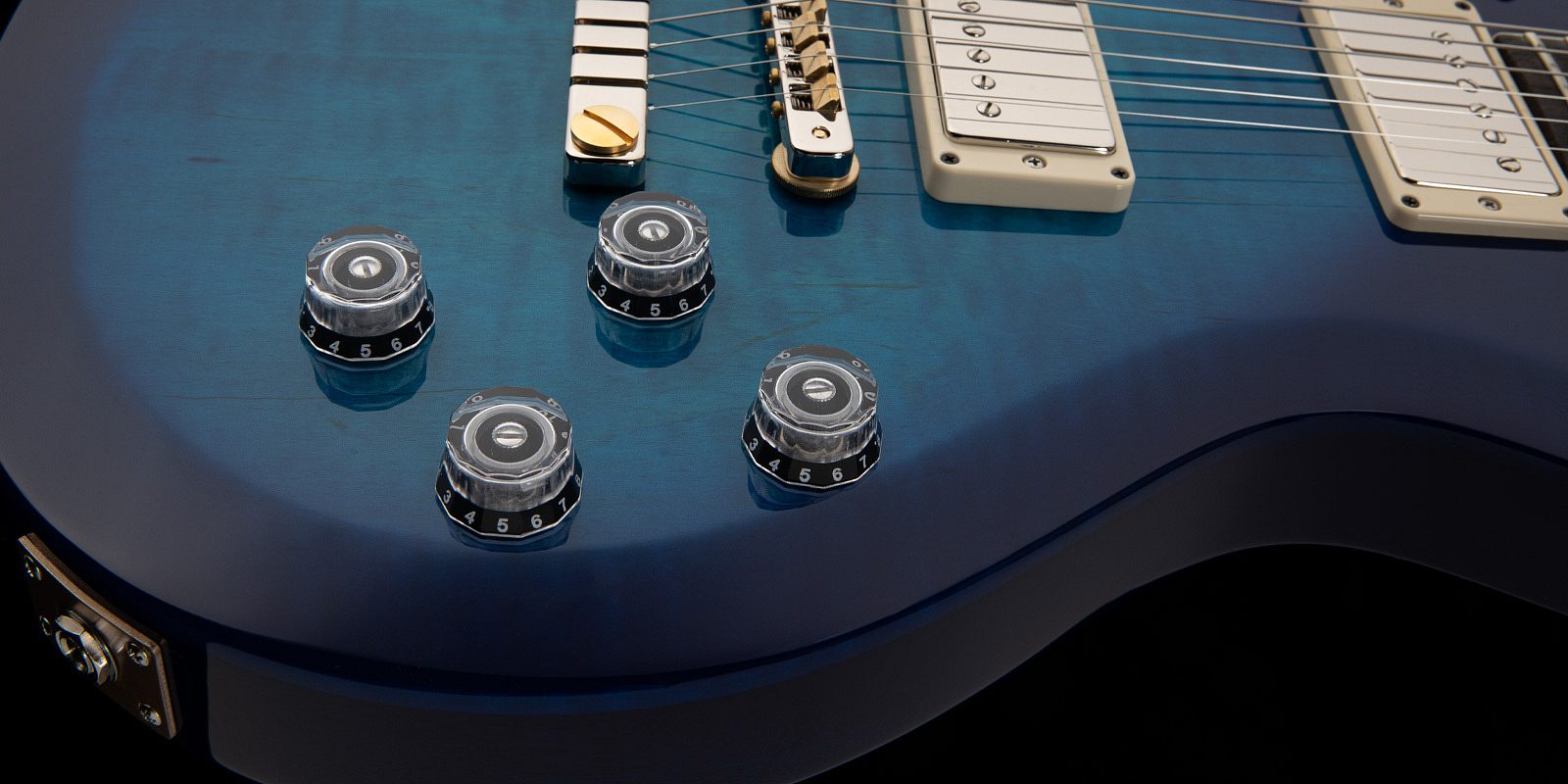

Controls
S2 McCarty 594 Singlecut - Controls Description
PRS 58/15 “S” LT treble and bass pickups
Volume and push/pull tone controls for each pickup, 3-way toggle pickup switch
Drawing shows McCarty 594 silhouette, 594 SC is a single-cutaway guitar, and the toggle swtich for the 594 Thinline is placed next to the volume and tone knobs

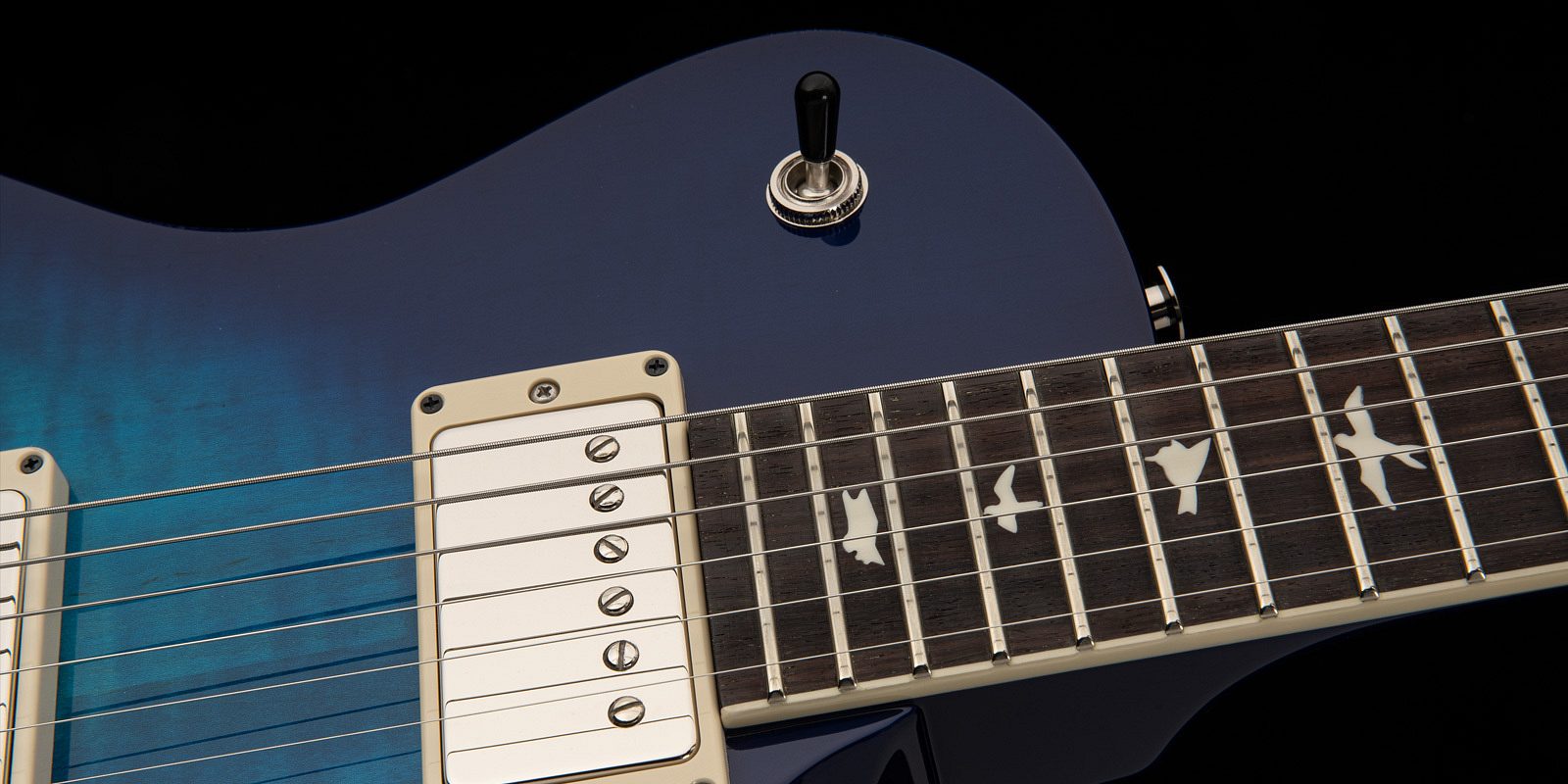

3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup
Push/pull tone pots
Down - humbucker mode
Up - single coil mode
Colors
Black Amber
Dark Cherry Sunburst

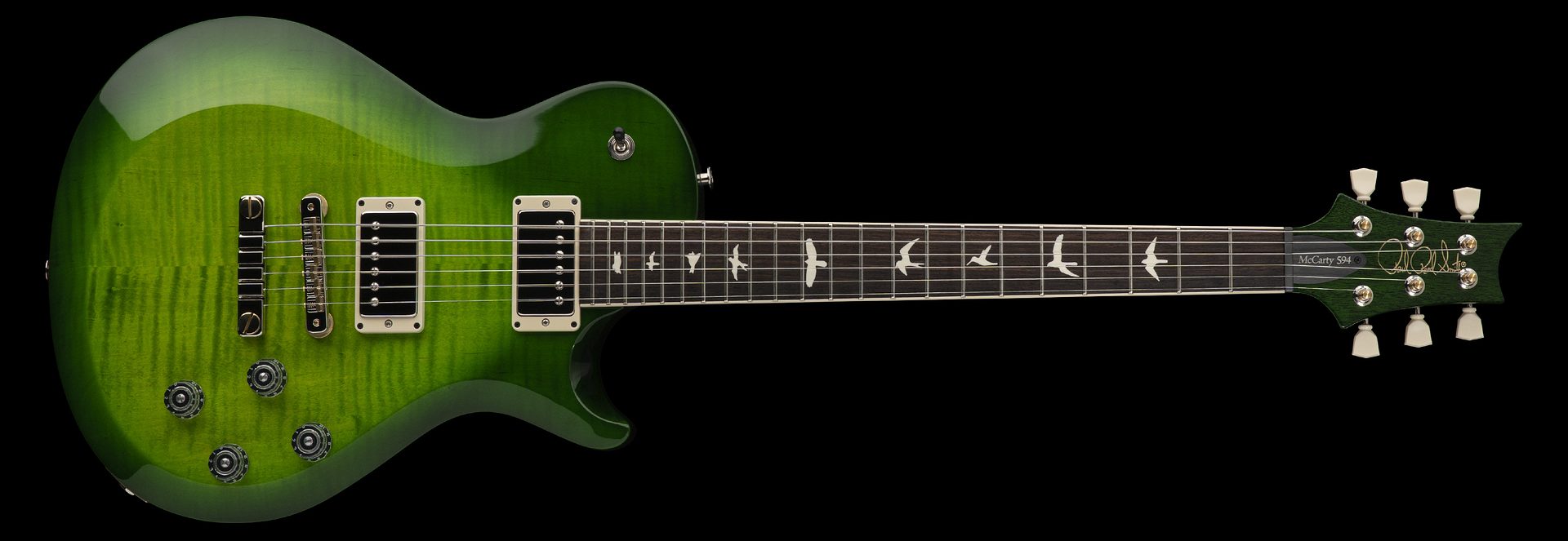

Eriza Verde*

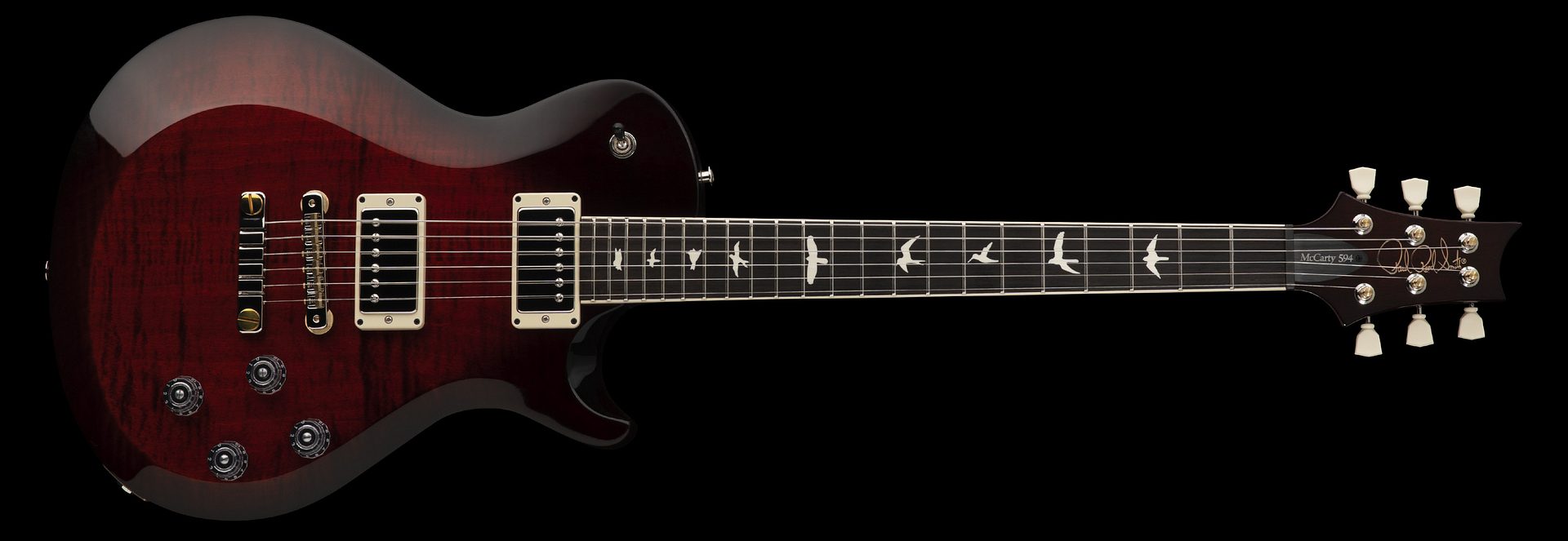

Fire Red Burst

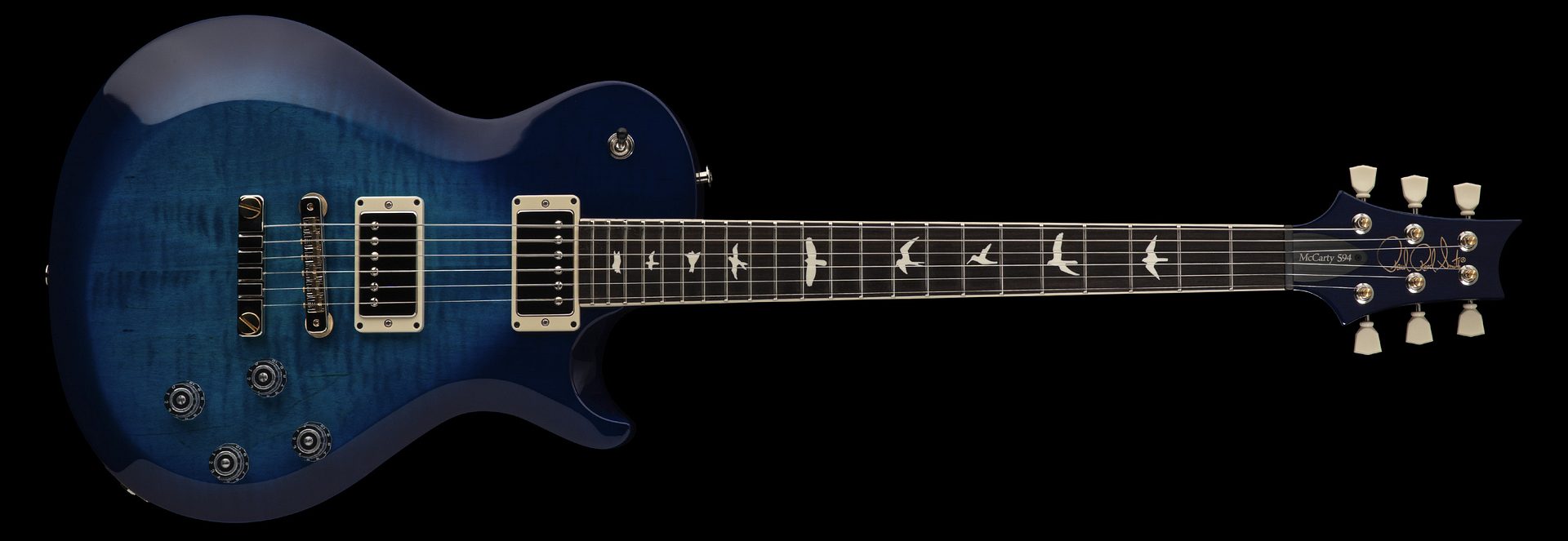

Lake Blue

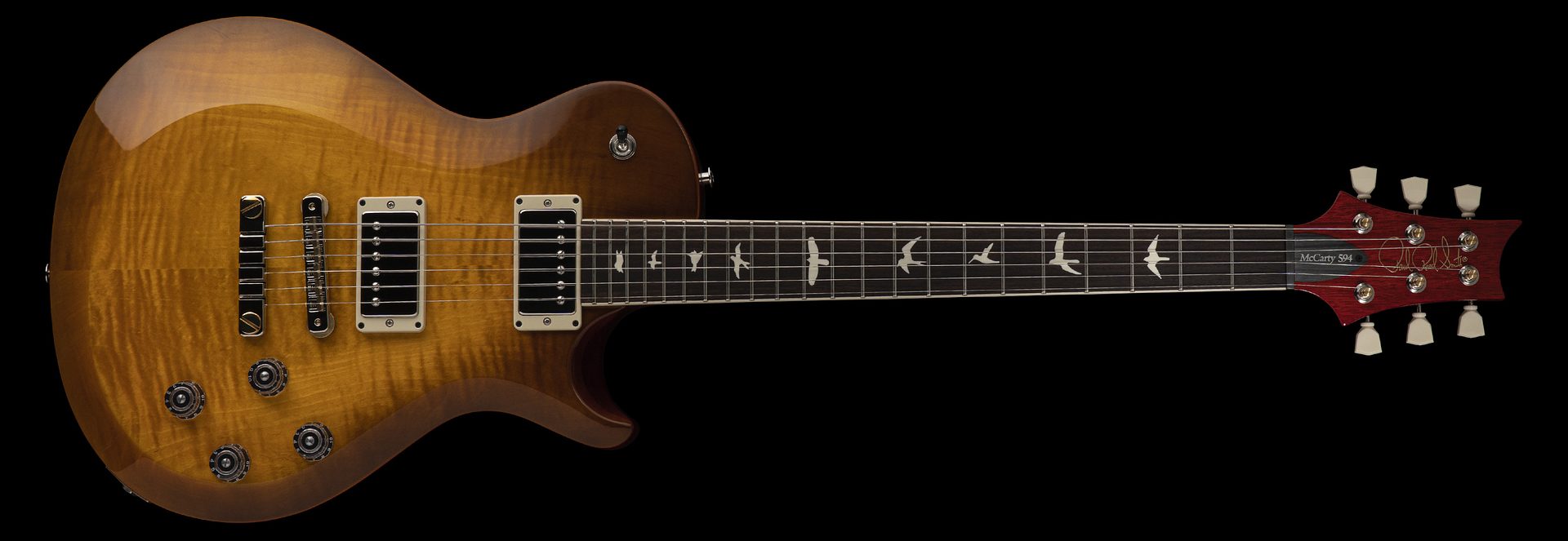

McCarty Sunburst
