Vintage Tone Out Of The Box

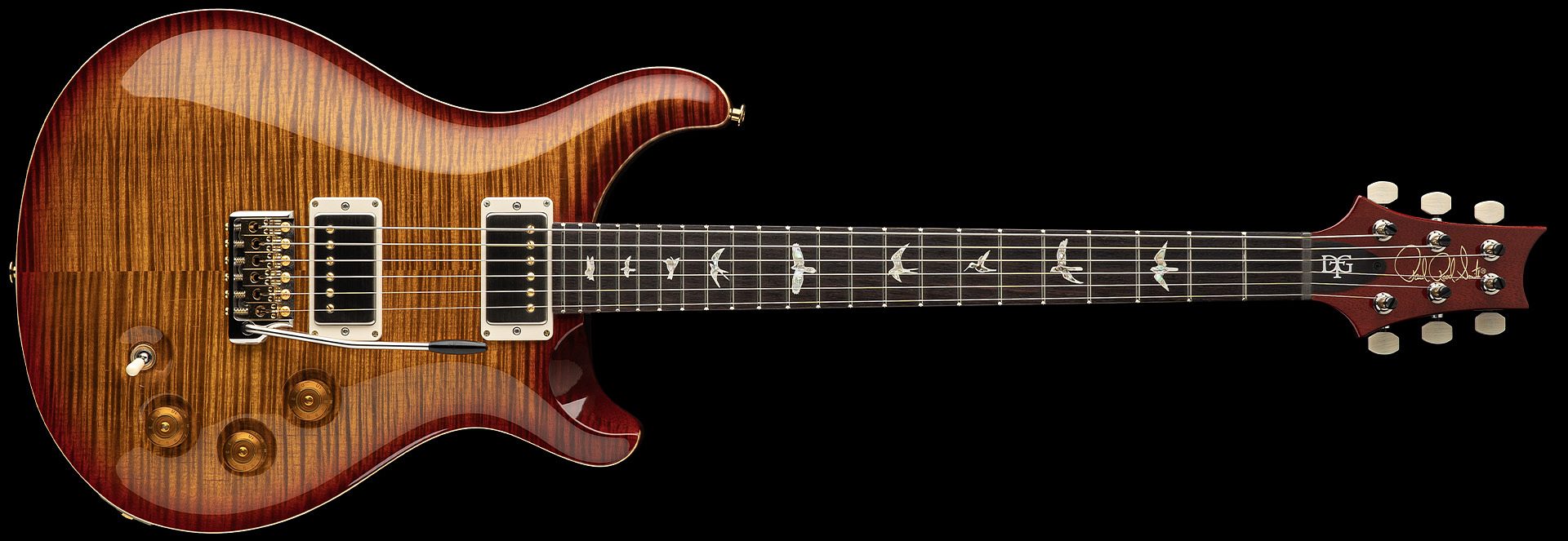

The DGT (David Grissom Trem) is the result of more than 20 years of collaboration between Paul Reed Smith and David Grissom. The DGT is based on the McCarty platform with a unique DGT neck shape, taller frets, special pickups, and a revised control layout. Grissom and Paul spent a year A/B-ing more than forty sets of pickups before nailing the vintage-voice of DGT humbuckers. When paired with individual volume controls for each pickup and a push/pull master tone control that operates the coil taps, DGT pickups provide versatility and articulation.

“The DGT is a product a lot of miles down the road: a lot of gigs, a lot of records. It’s like picking up a vintage guitar. It sounds like a vintage guitar, and out of the box it’s ready to go. There’s a whole lot of thought gone into this. The DGT is pretty perfect to me.” – David Grissom

Featured Specifications

Specifications

Body
Body Construction Solidbody
Top Wood Maple

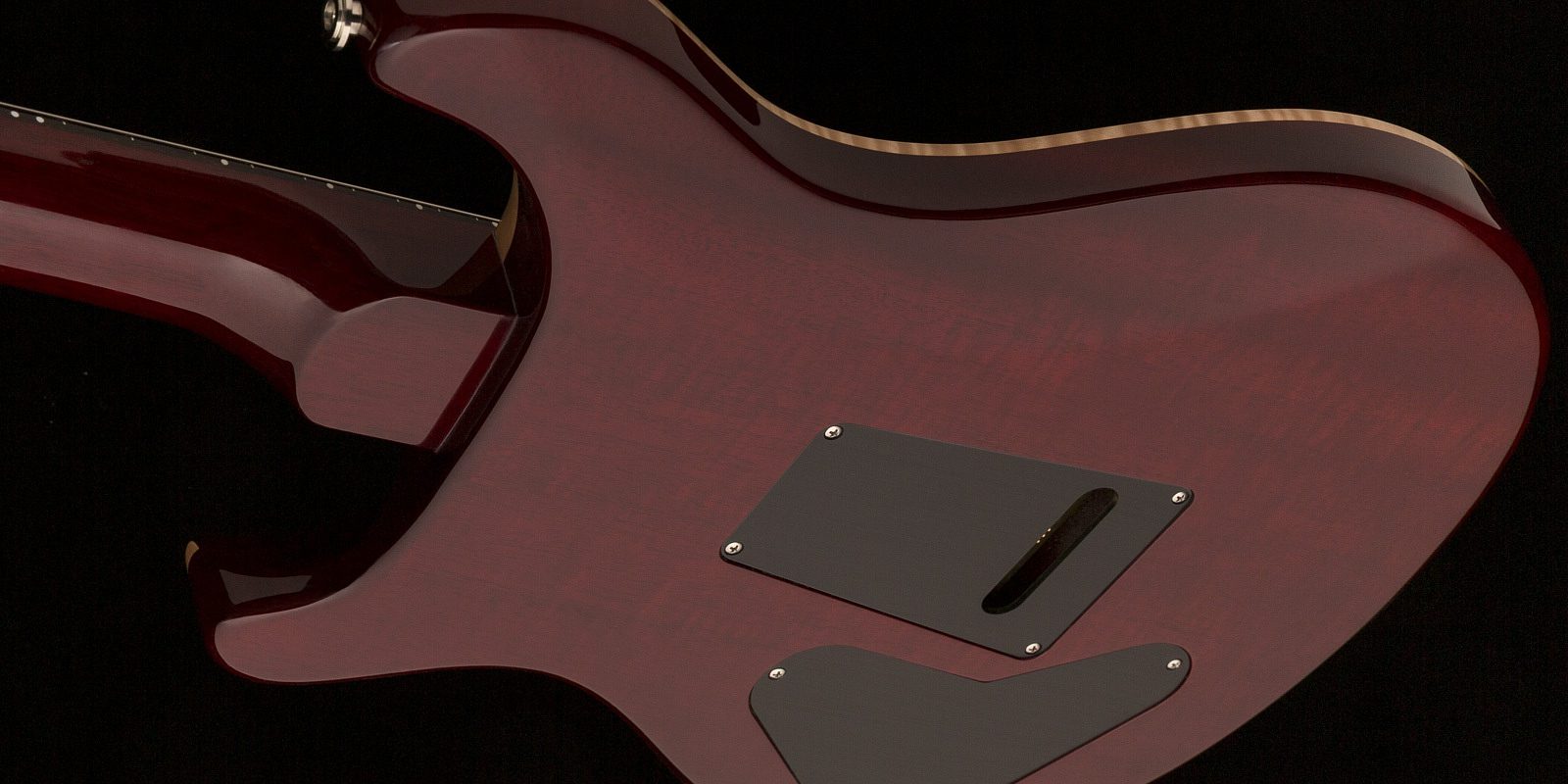

Back Wood Mahogany
Top Carve Violin
Neck
Number of Frets 22
Scale Length 25"
Neck Wood Mahogany
Neck Construction One-Piece
Truss Rod PRS Double-Acting
Neck Shape DGT
Neck Depth at the 1/2 Fret 27/32"
Neck Depth at the 12 1/2 Fret 61/64"
Neck Width at the Nut 1 21/32"
Neck Width at the Body 2 7/32"
Fretboard Wood Rosewood
Fretboard Radius 10"

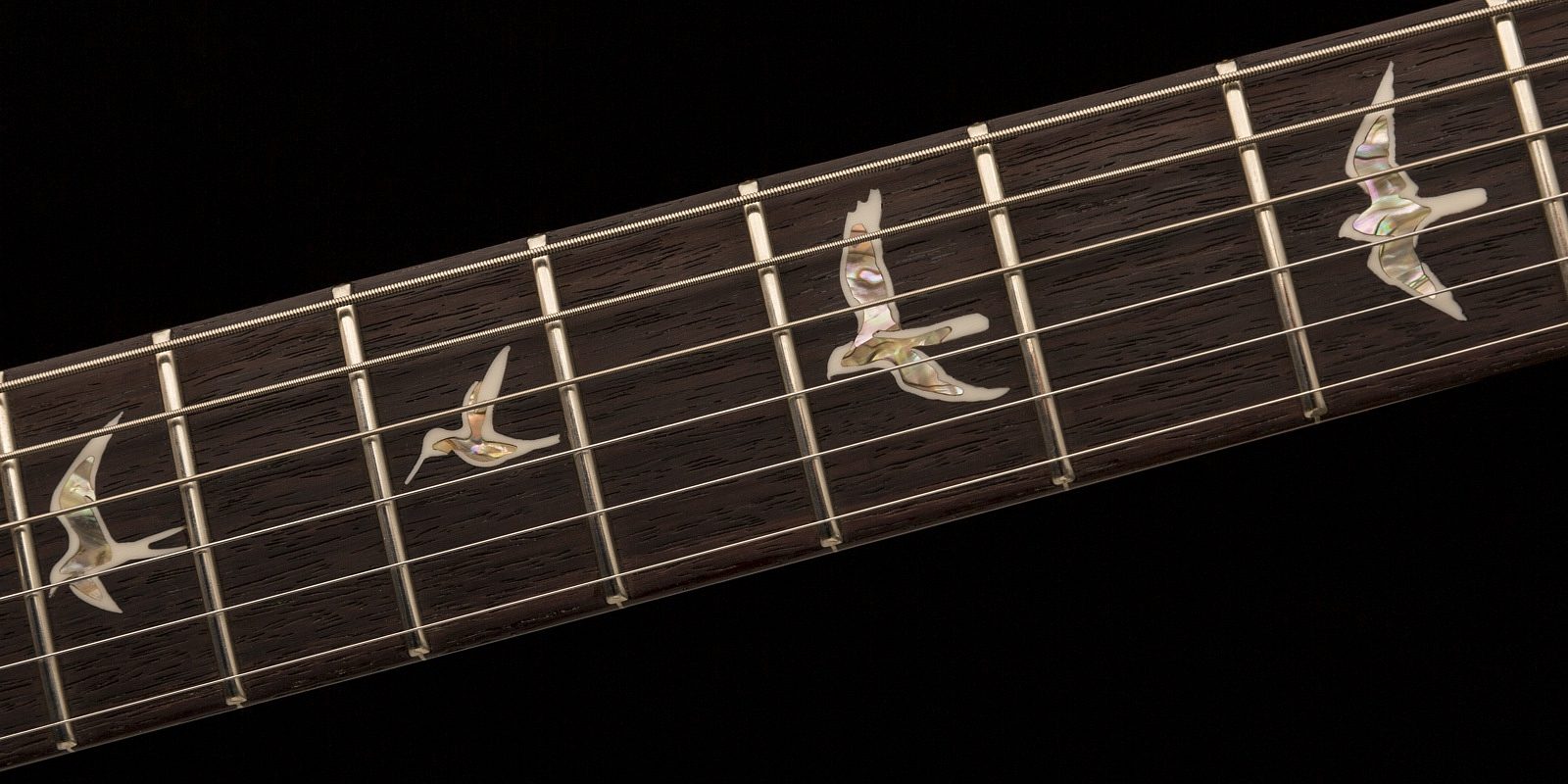

Fretboard Inlay Moons (Birds Optional)
Headstock Logo Signature, Decal
Neck/Body Assembly
Neck/Body Assembly Type Set
Finish
Finish Type High-Gloss Nitro
Hardware

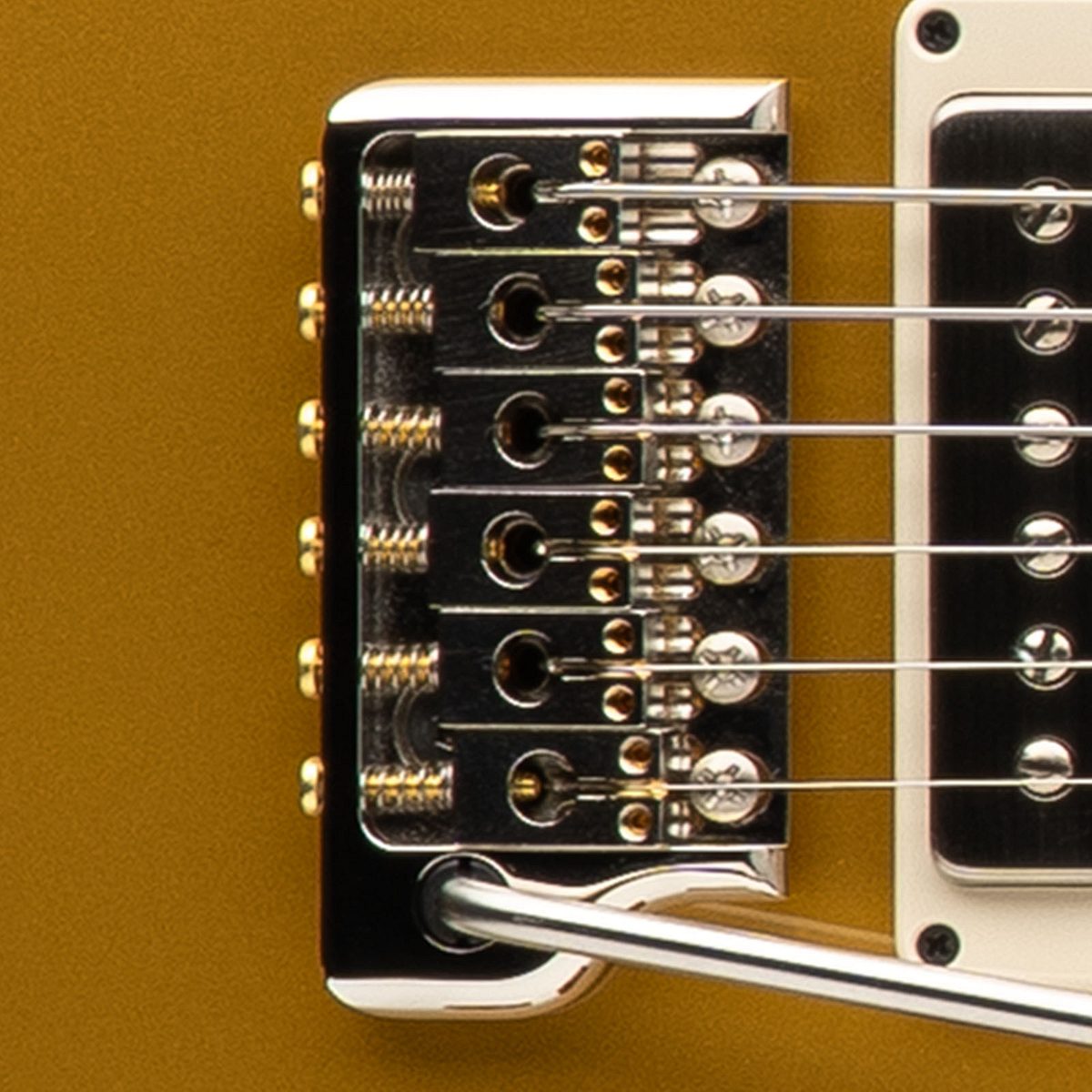

Bridge PRS Patented Tremolo, Gen III

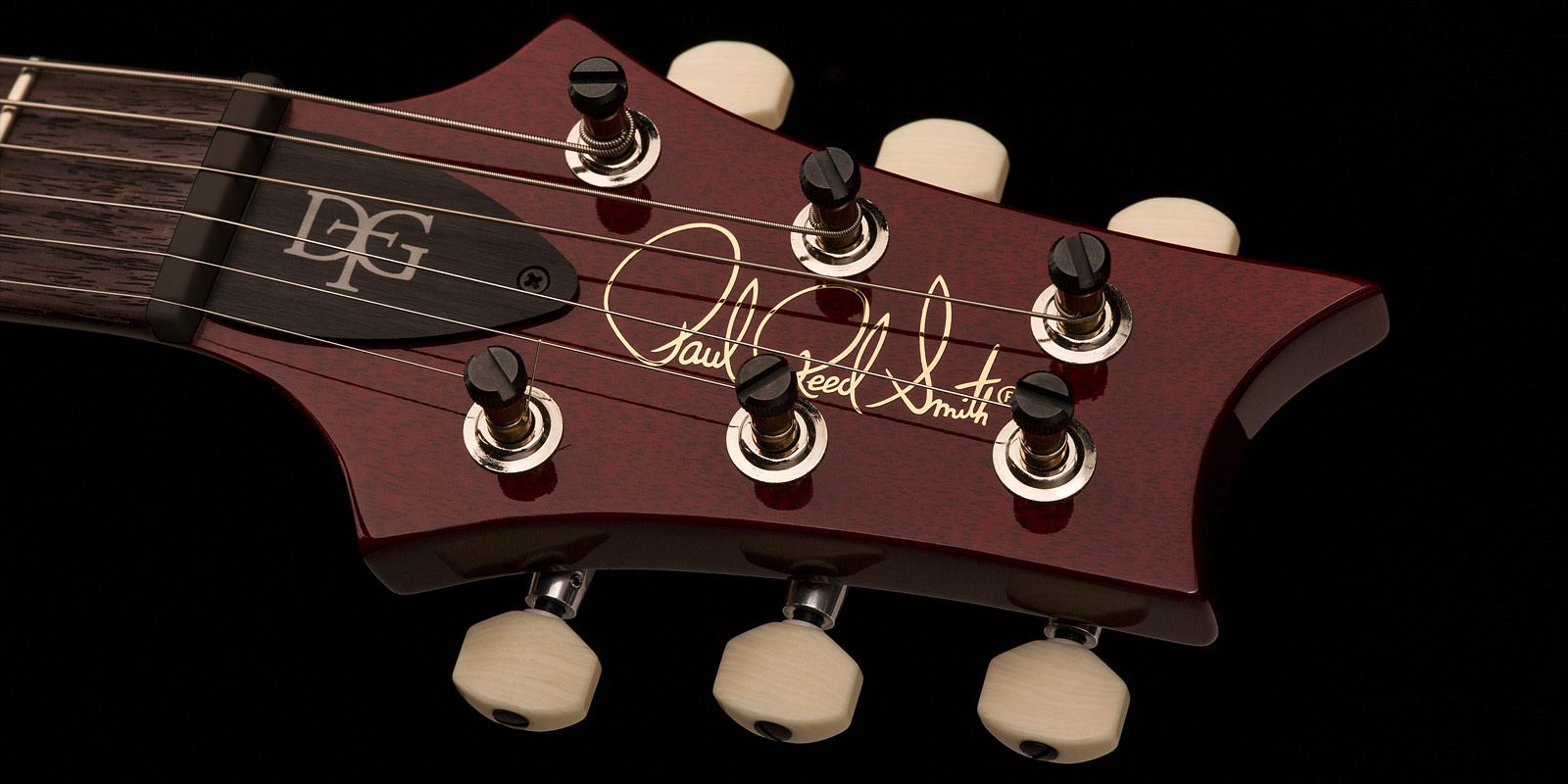

Tuners Phase III with Faux-Bone Buttons
Hardware Type Nickel
Nut PRS
Truss Rod Cover "DGT"
Electronics

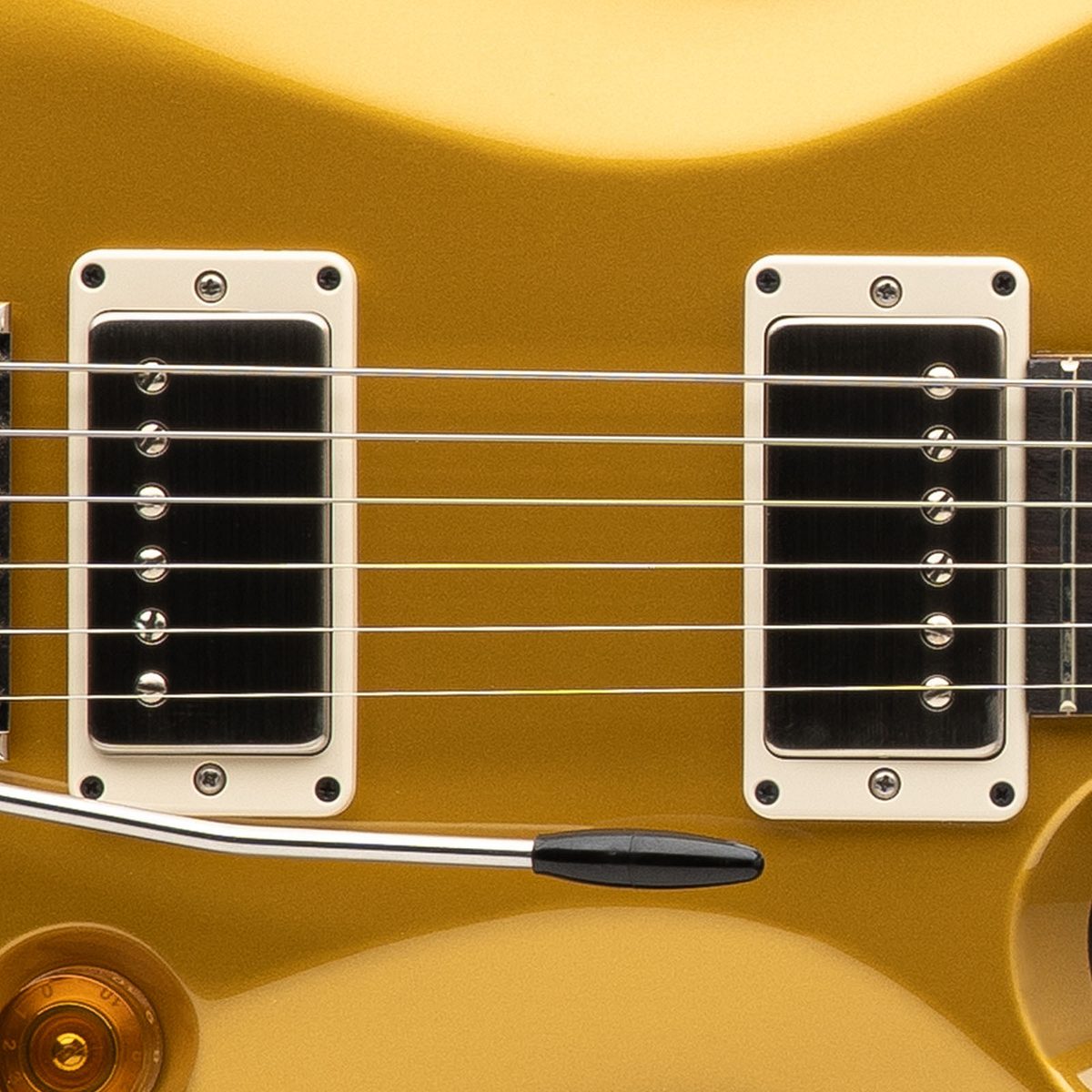

Treble Pickup DGT
Bass Pickup DGT

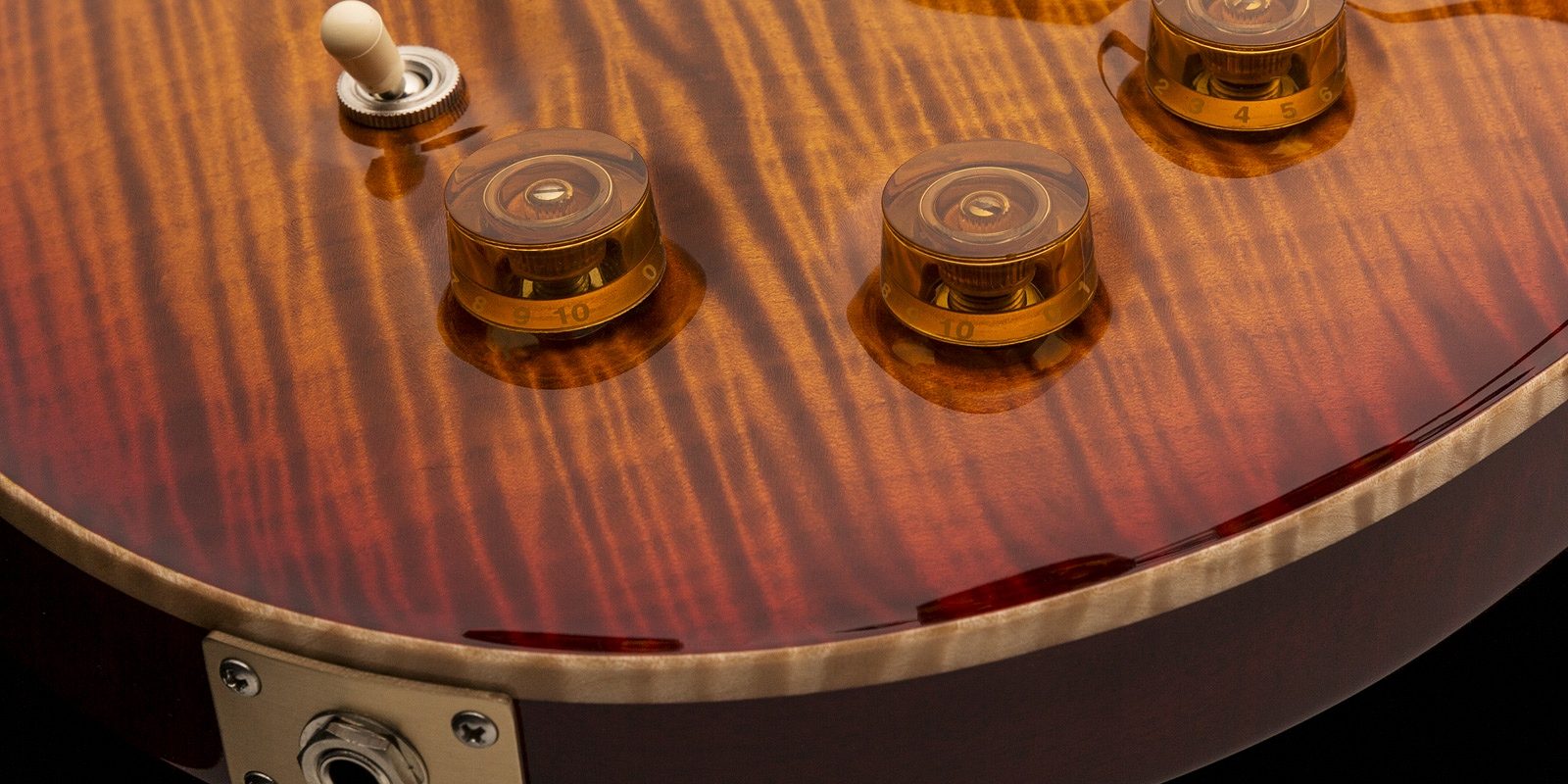

Controls Two Volume Controls w/ Push/Pull Tone Control and 3-Way Toggle Pickup Switch
Additional Info
Strings PRS Signature 11-49 (with a plain “G”)
Tuning Standard (6 String): E, A, D, G, B, E
Case Hardshell Case
Options 10 Top with Hybrid Hardware

Controls

Infographic showing switching positions for DGT

DGT - Controls Description

3-way toggle pickup switch

Position 1 (down) - treble pickup

Position 2 - treble and bass pickups

Position 3 (up) - bass pickup

Push/pull tone pot

Down - humbucker mode

Up - single coil mode

Colors

Black Gold Wraparound Burst

Black Gold Wraparound Burst

Charcoal

Charcoal

Dark Cherry Burst

Dark Cherry Burst

Faded Blue Jean

Faded Blue Jean

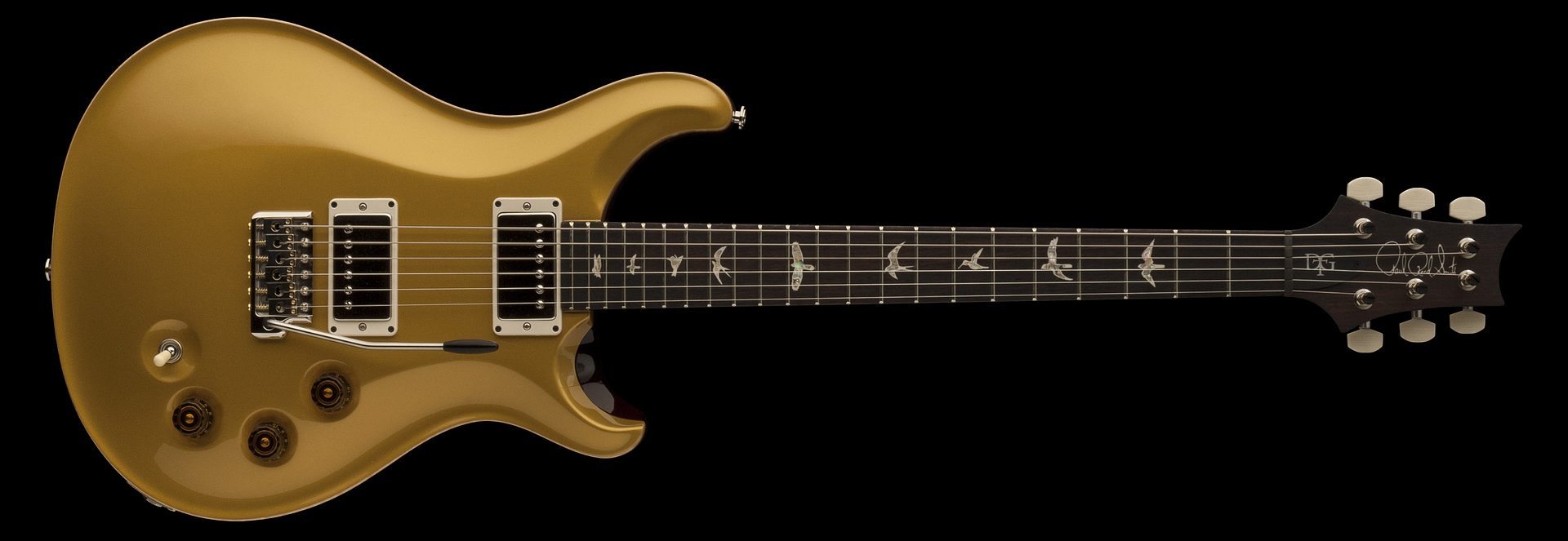

Gold Top (Opaque Top with Natural Back)

Gold Top (Opaque Top with Natural Back)

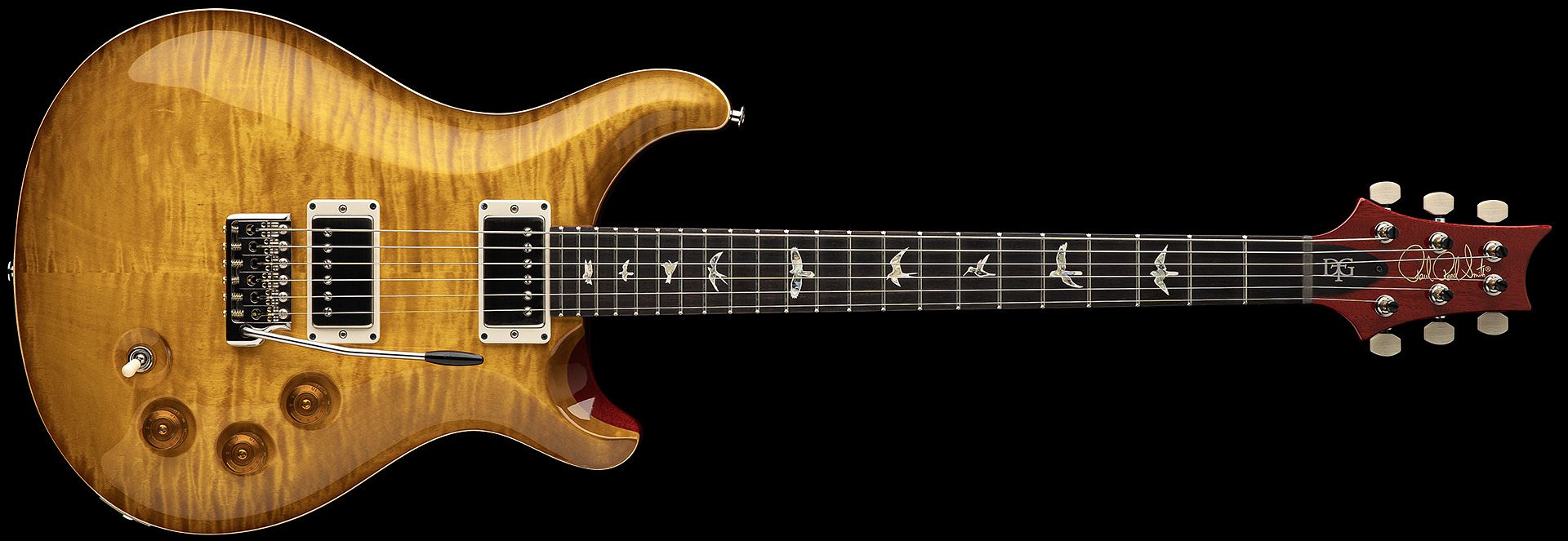

McCarty Sunburst

McCarty Sunburst

McCarty Tobacco Sunburst

McCarty Tobacco Sunburst

Find A Dealer

Accolades

“At first glance, the DGT is pretty much what we’ve come to expect from PRS — meaning it’s flawless and gorgeous...You need to play the DGT to really grasp the Grissomization, however.”

- Guitar Player

“Swiss Army axe...”

- Vintage Guitar

“Arguably the best PRS ever.”

- Music Radar
