SE McCarty 594
Vintage Inspired Versatility
The SE McCarty 594 is a versatile, vintage-inspired instrument that delivers both humbucking and single-coil tones in a reliable, roadworthy guitar. Thanks to its dual volume and push/pull tone controls, the SE McCarty 594 can seamlessly master humbucking and single coil sonic territories, so players can find all the tones they are looking for.
Its 58/15 LT “S” pickups were carefully designed to deliver warm, vintage-inspired tone with sweetness and clarity. The zinc two-piece bridge and vintage-style tuners anchor the SE McCarty 594 and stay true to its vintage promise, while the classic PRS body shape and bird inlays add a hint of modern style to this classic feature set. Other features include a bound 22-fret Pattern Vintage neck and slightly thicker back for sustain.
Designed to capture the heart of the McCarty family of instruments, the SE McCarty 594 is high-quality workhorse instrument.
Additional Videos
These videos were created by our partners and friends. While many are not sponsored, some may feature paid partnerships. They all offer independent insights and reviews of our products.
Featured Specifications
PRS Two-Piece Bridge
Made of zinc and brass, this bridge has four contact points and added mass, enhancing the natural tone of the guitar and helping to create a more resonant instrument.
Vintage-Style Tuners
Traditional closed-back tuners engineered to promote resonance.
PRS 58/15 LT “S”
“Low turn” pickups with vintage warmth and welcome clarity, designed to PRS’s specifications.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Maple |
| Veneer | Flame Maple |
| Back Wood | Mahogany |
| Top Carve | Shallow Violin |
| Neck | |
| Number of Frets | 22 |
| Scale Length | 24.594” |
| Neck Wood | Bound Mahogany |
| Neck Construction | Multi-Ply |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Vintage |
| Neck Depth at the 1/2 Fret | 7/8" |
| Neck Depth at the 12 1/2 Fret | 63/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |
| Fretboard Inlay | Birds |
| Headstock Logo | Signature "SE" |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Hardware | |
| Bridge | PRS Two-Piece |
| Tuners | Vintage-Style |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "McCarty 594" |
| Electronics | |
| Treble Pickup | 58/15 LT "S" |
| Bass Pickup | 58/15 LT "S" |
| Controls | Two Volume and Two Push/Pull Tone Controls with 3-Way Toggle Pickup Switch on Upper Bout |
| Additional Info | |
| Strings | PRS Classic 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Gig Bag |
Controls
SE McCarty 594 - Controls Description
Position 1: (Switch Down) Treble / Humbucker
Position 1: Treble / Coil-Tap
Position 2: Treble / Humbucker - Bass / Humbucker
Position 2: Treble / Coil-Tap - Bass / Coil-Tap
Position 2: Treble / Humbucker - Bass / Coil-Tap
Position 3: Bass / Humbucker
Position 3: (Switch Up) Bass / Coil-Tap
Colors
Black Gold Burst

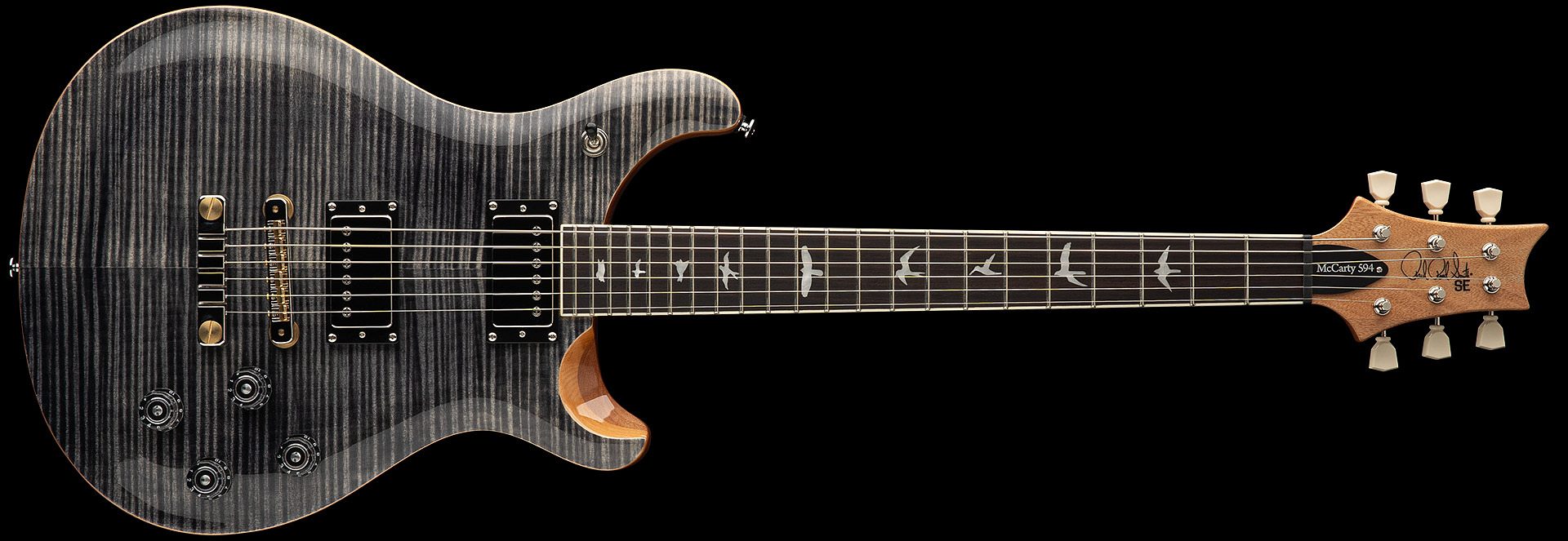

Charcoal

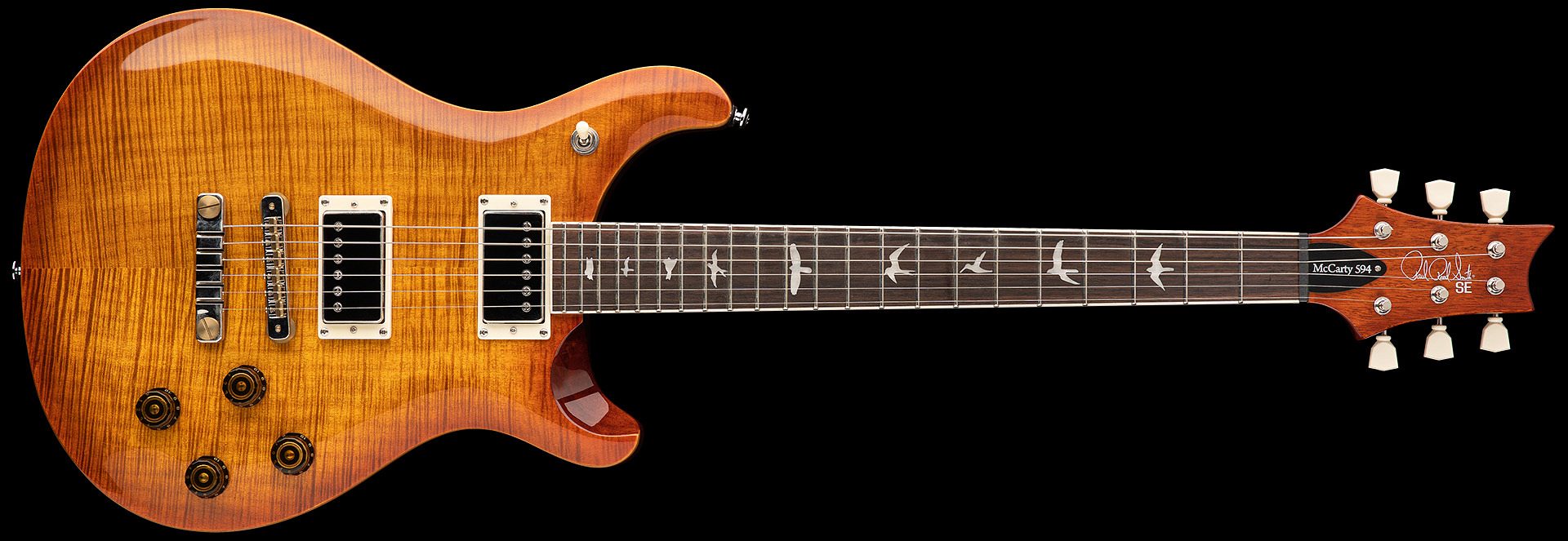

Vintage Sunburst
