S2 Custom 24-08
Gig-Ready Versatility
The S2 Custom 24-08 shares many of the same specifications as the S2 Custom 24 but adds a new level of versatility with its intuitive switching system. Platform specifications for this guitar include a maple top, mahogany back and neck, and rosewood fretboard with bird inlays. It boasts 24 frets, a 25” scale length Pattern Thin neck, PRS’s Patented Gen III Tremolo, and Phase III Tuners with unplated brass shafts and wing buttons.
The Maryland, USA-made PRS TCI pickups deliver full, single-coil tones reminiscent of vintage soapbars. The pickups are paired with a 3-way toggle switch and two mini-toggle EQ switches. The dual EQ mini-toggle switches act as tuned high-pass filters when engaged (in the up position), removing shelved low-end and allowing the high frequencies through for more clarity and musical highs.
For classic PRS feel with expanded flexibility, check out the PRS S2 Custom 24-08.
Featured Specifications
PRS Patented Tremolo
Patented design, delivering tonal fidelity, player comfort, and tuning stability.

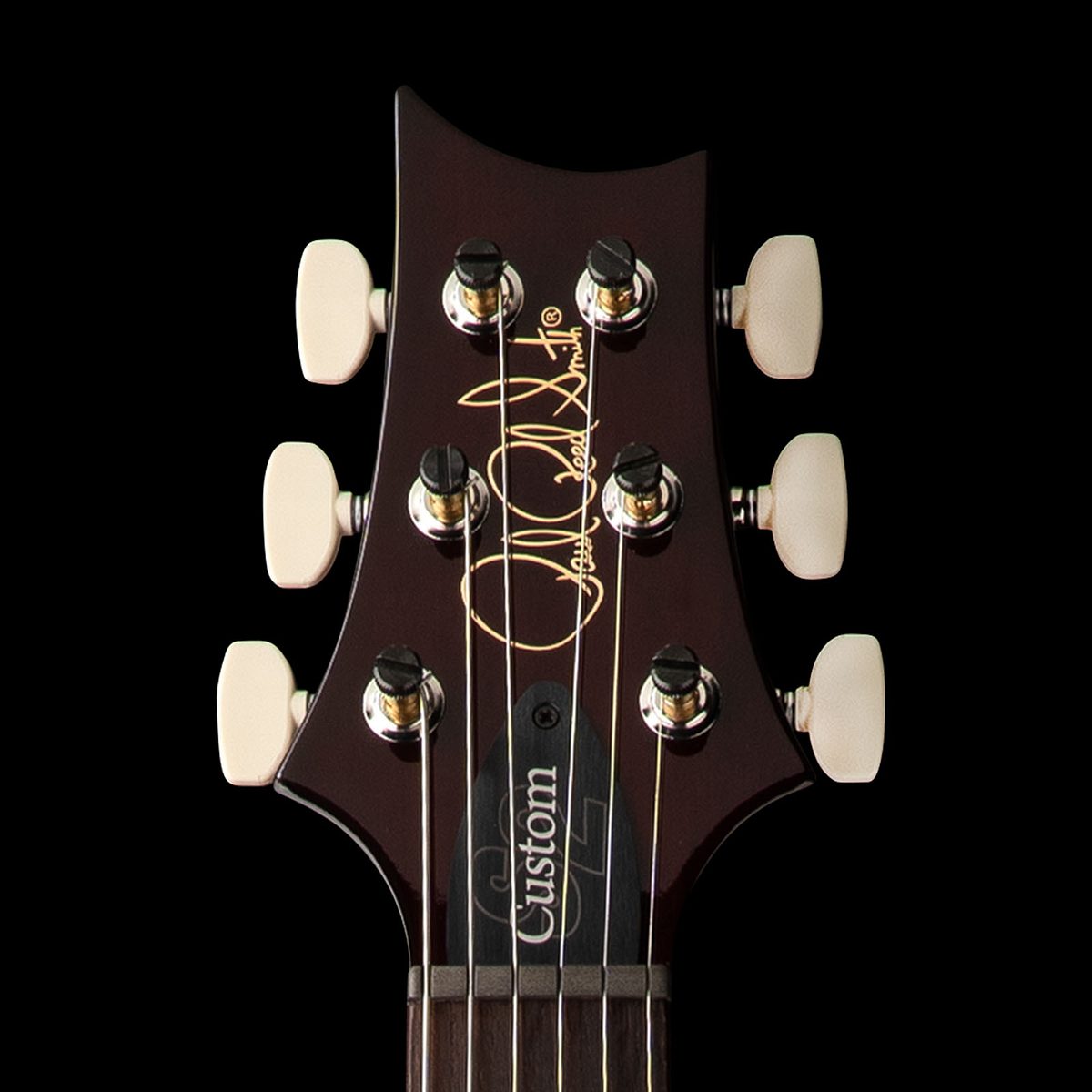

PRS Phase III Locking Tuners with Wing Buttons
Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

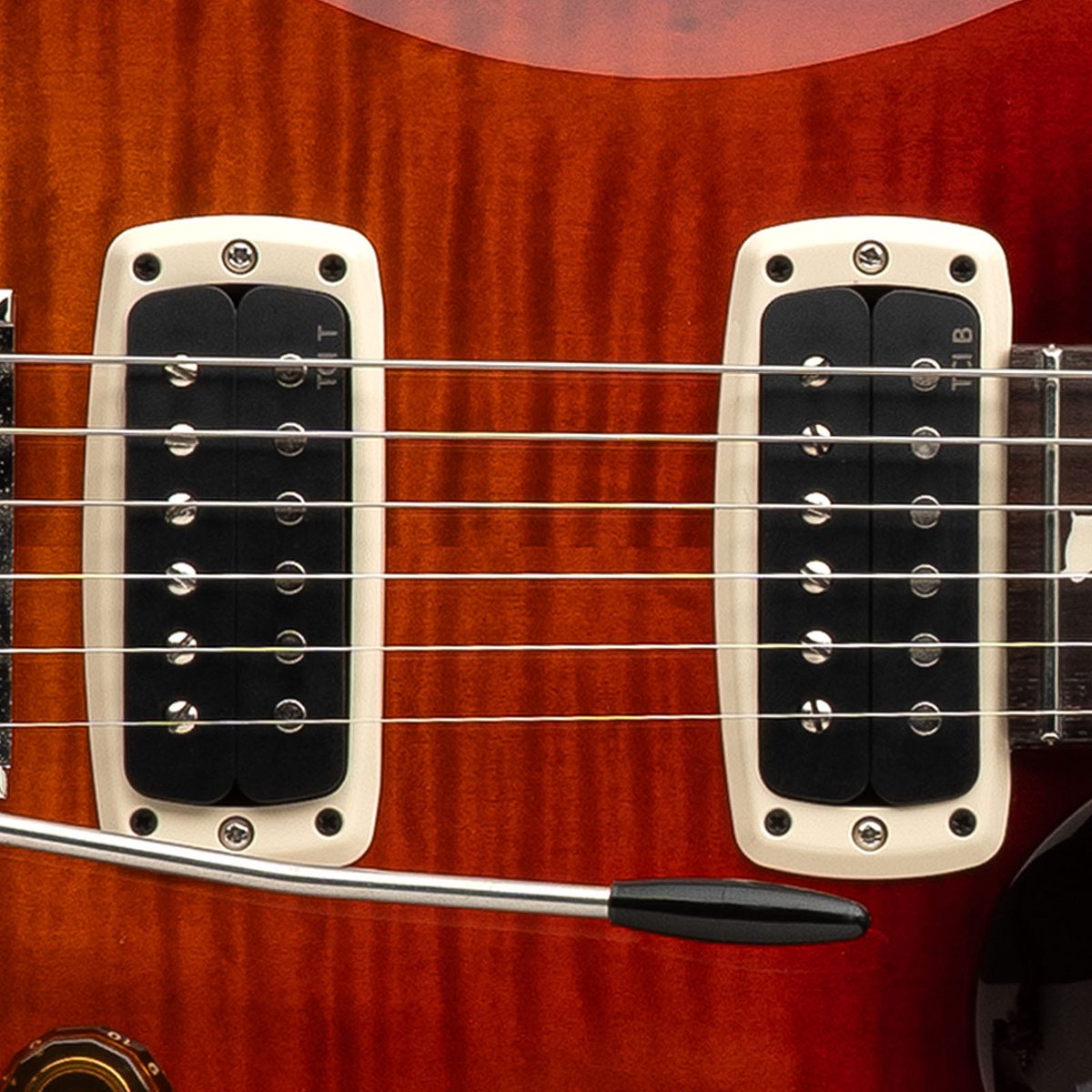

PRS TCI Pickups
Musical pickups that offer versatile tones from spanky singlecoils to full soapbars.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Maple |
| Back Wood | Mahogany |
| Top Carve | Asymmetric Bevel |
| Neck | |
| Number of Frets | 24 |
| Scale Length | 25" |
| Neck Wood | Mahogany |
| Neck Construction | Scarfed |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Thin |
| Neck Depth at the 1/2 Fret | 53/64" |
| Neck Depth at the 12 1/2 Fret | 57/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |
| Fretboard Inlay | Birds |
| Headstock Logo | Signature, Decal |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Finish | |
| Finish Type | High-Gloss Nitro |
| Hardware | |
| Bridge | PRS Patented Tremolo |
| Tuners | PRS Phase III Locking Tuners w/ Wing Buttons |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "S2 Custom" |
| Electronics | |
| Treble Pickup | TCI |
| Bass Pickup | TCI |
| Controls | Volume and Tone Controls with 3-Way Toggle Pickup Switch and Two Mini-Toggle EQ Switches |
| Additional Info | |
| Strings | PRS Signature 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Premium Gig Bag |
Controls
S2 Custom 24-08 - Controls Description
PRS TCI treble and bass pickups
Master volume and tone controls, 3-way toggle pickup switch, two mini-toggle switches
3-way toggle pickup switch
Position 1 (down) - treble pickup
Position 2 - treble and bass pickups
Position 3 (up) - bass pickup
Mini-toggle switches
Down - EQ Flat
Up - High-Pass Filter Engaged
Colors
Black Amber
Dark Cherry Sunburst
Faded Gray Black Blue Burst
Faded Gray Black Purple Burst
Fire Red Burst
Lake Blue
