Custom 24
The One That Started It All

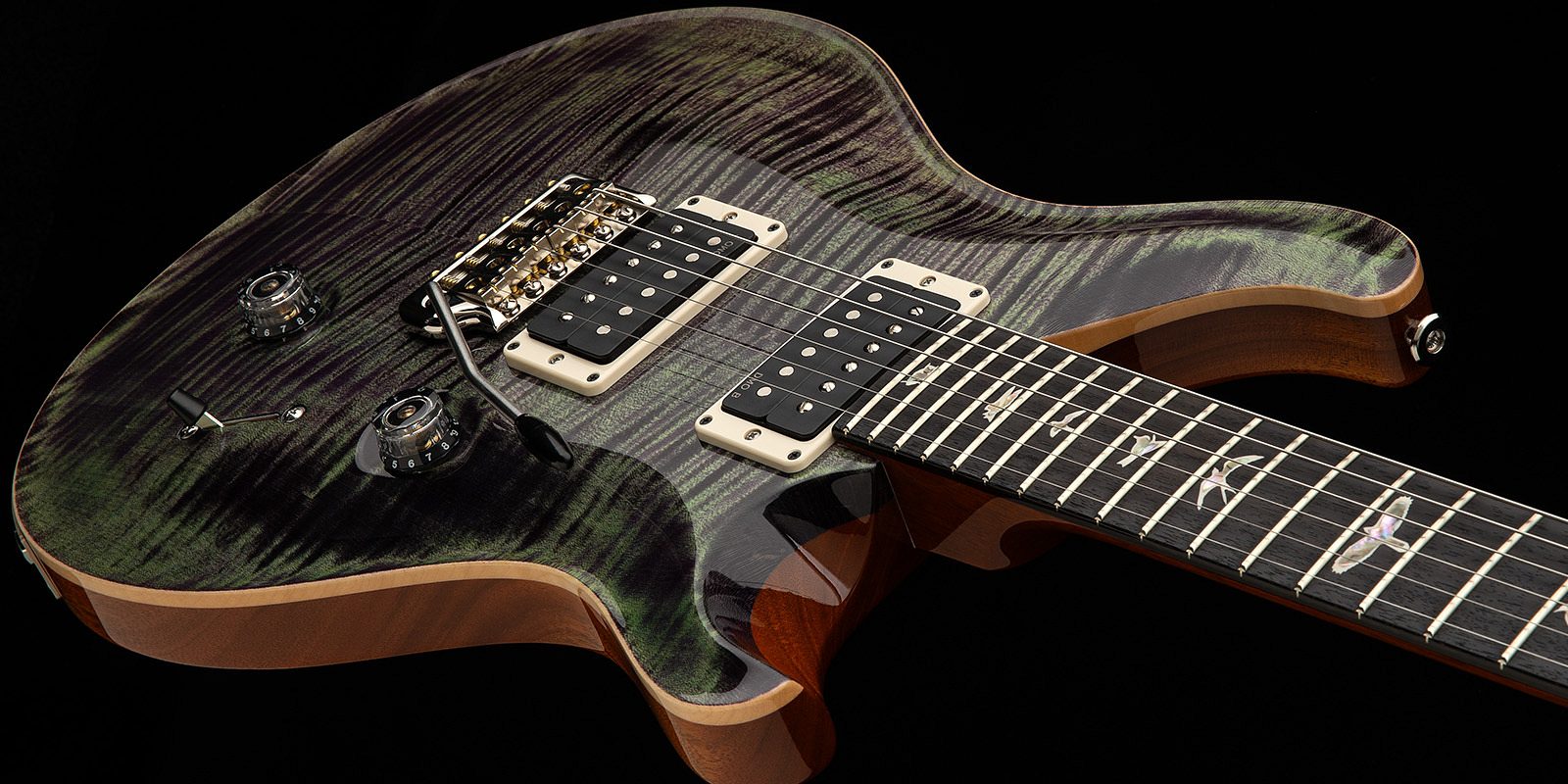

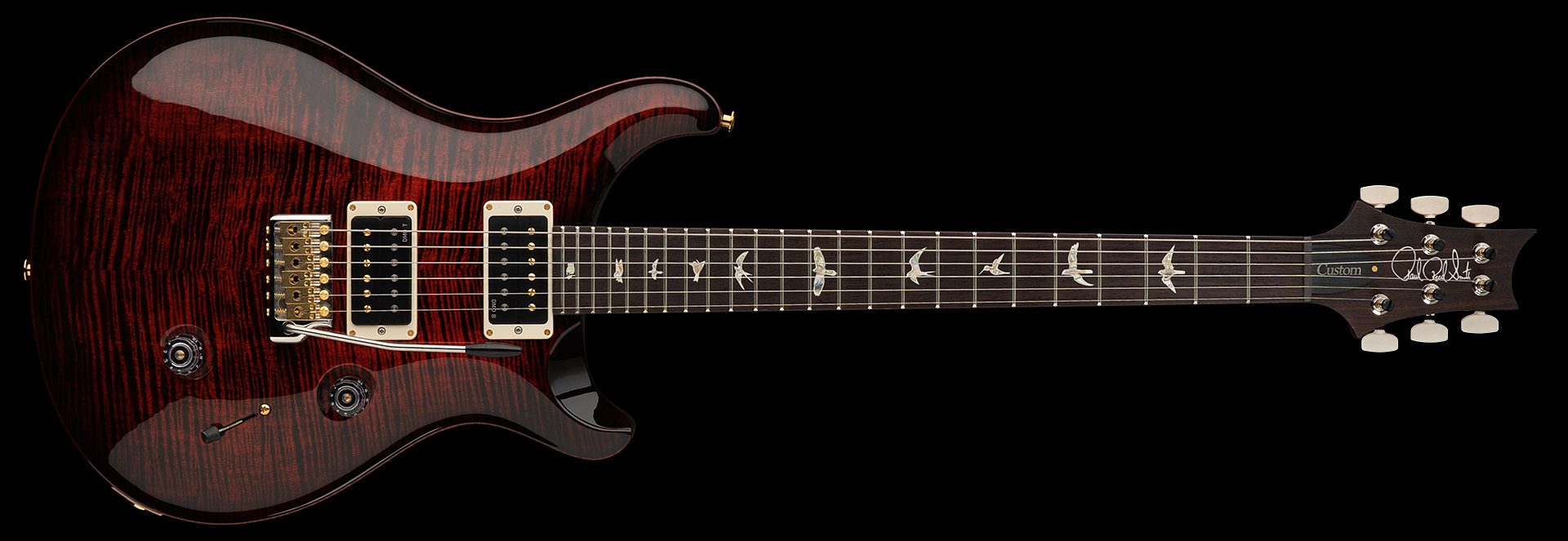

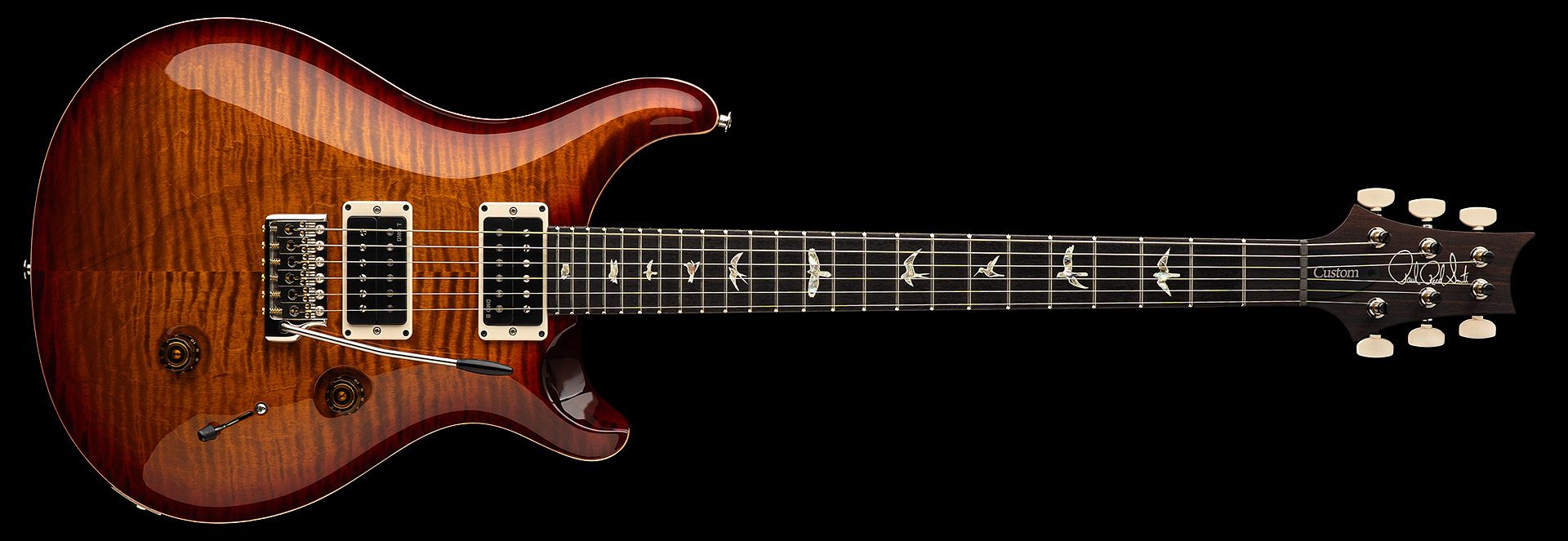

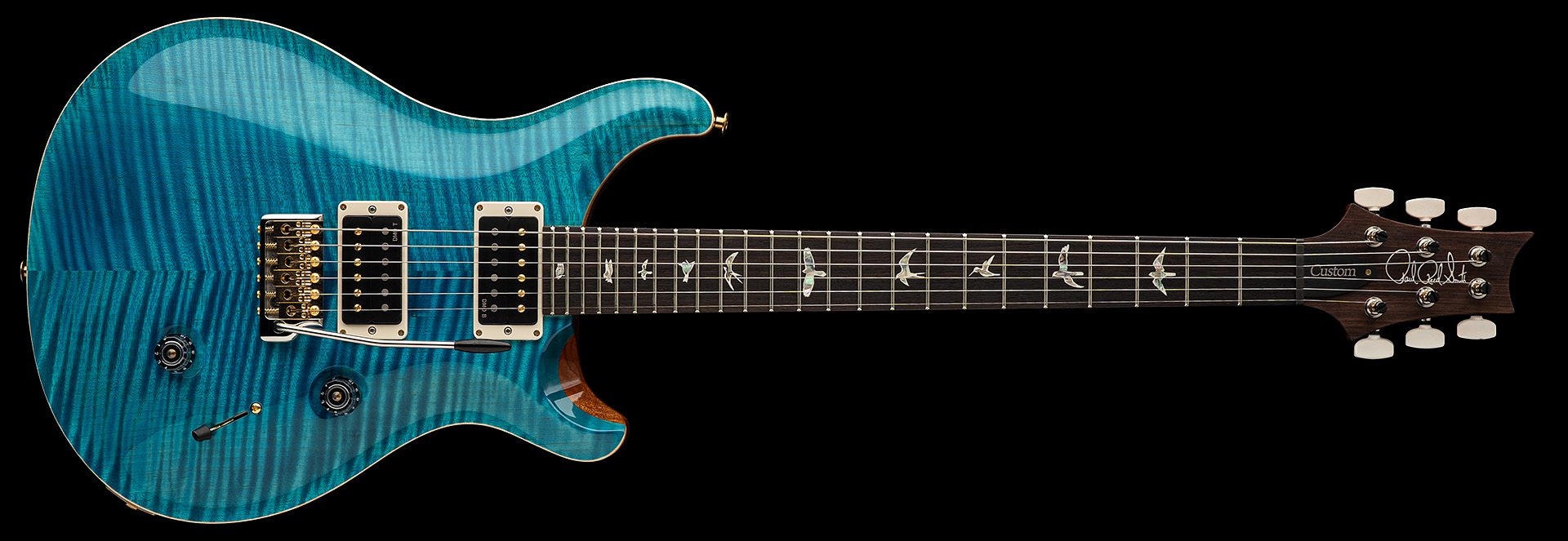

The Custom 24 is the original PRS. Since its introduction, it has offered a unique option for serious players and defined PRS tone and playability.
Played by internationally touring artists, gigging musicians, and aspiring players, the Custom 24 features a figured maple top and mahogany back with a 24-fret, 25” scale length mahogany neck with rosewood fretboard. Anchored by PRS’s patented Gen III tremolo and Phase III tuners with wing buttons the Custom 24 is known for its playability, versatility, and tuning stability.
The Custom 24 is outfitted with PRS DMO treble and bass pickups with volume and tone controls and a 5-way blade switch. DMO (Dynamic, Musical, Open) pickups were personally designed by Paul Reed Smith and the PRS New Products Engineering team. From our own hands-on research into coveted vintage pickup models to advancements in signal analyzation and “tuning” technology, these pickups incorporate every detail of pickup knowledge PRS has gained in recent years of R&D.
PRS DMO pickups have a “wide open” sound with vocal character, meaning they deliver clear, pleasant-sounding tones across a wide range of frequencies (bass to treble) in each pickup.
The Custom 24 is the quintessential PRS guitar. This iconic instrument was the first model that Paul Reed Smith brought to the public at PRS Guitars’ first Winter NAMM show in 1985 and has been a top seller ever since.
Featured Specifications

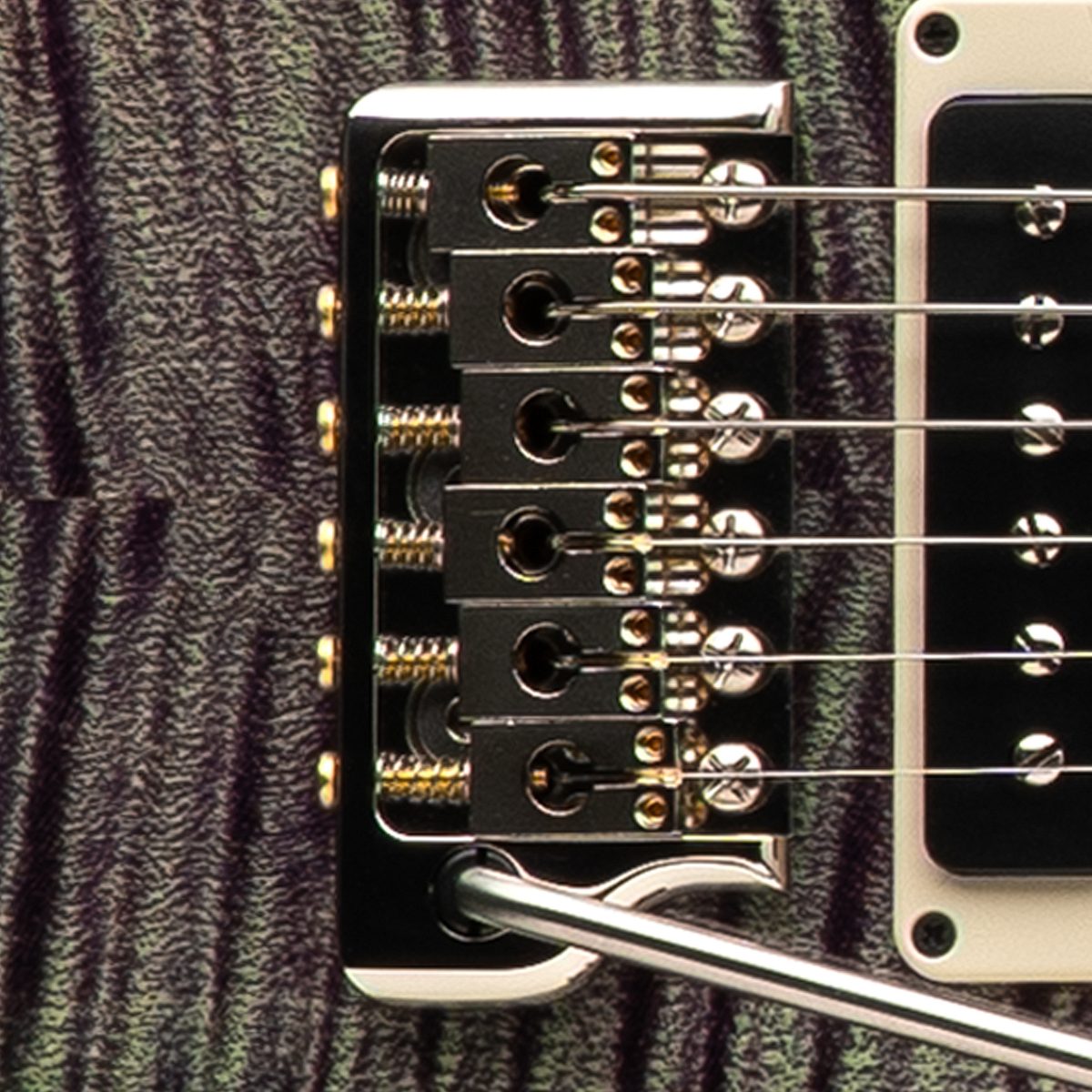

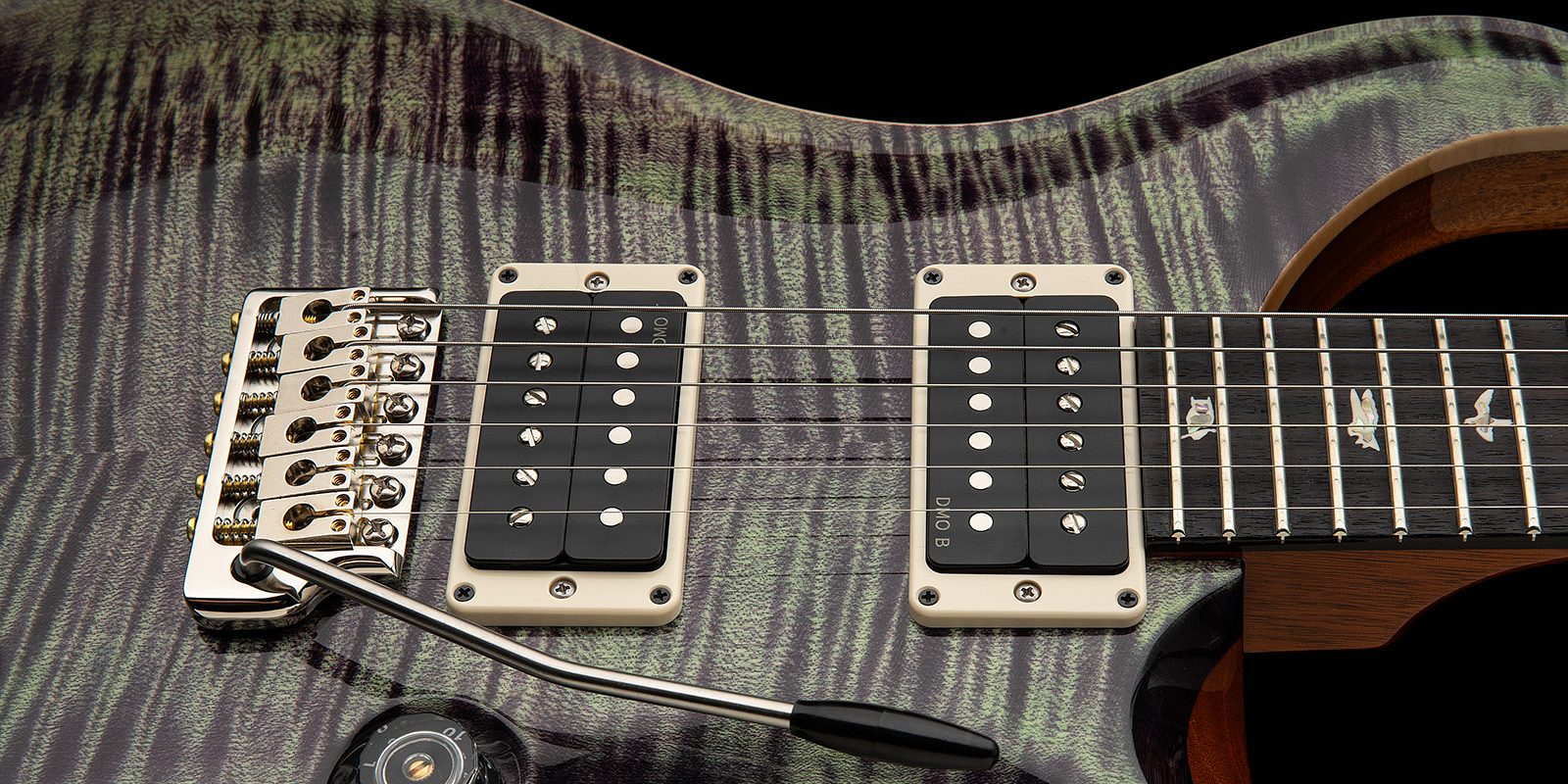

PRS Patented Tremolo, Gen III
Meticulous design delivering sonic fidelity, player ergonomics, and revolutionary tuning stability.

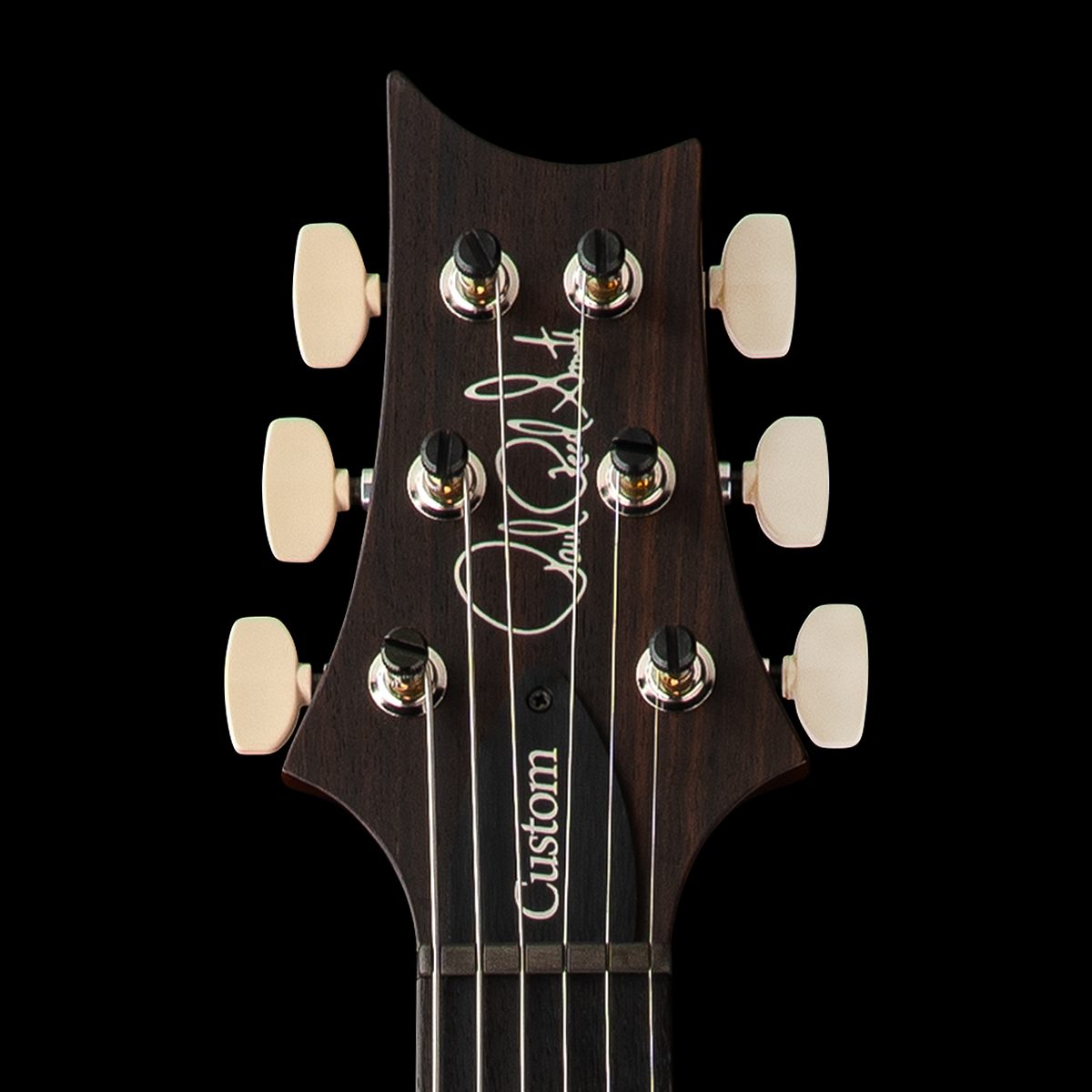

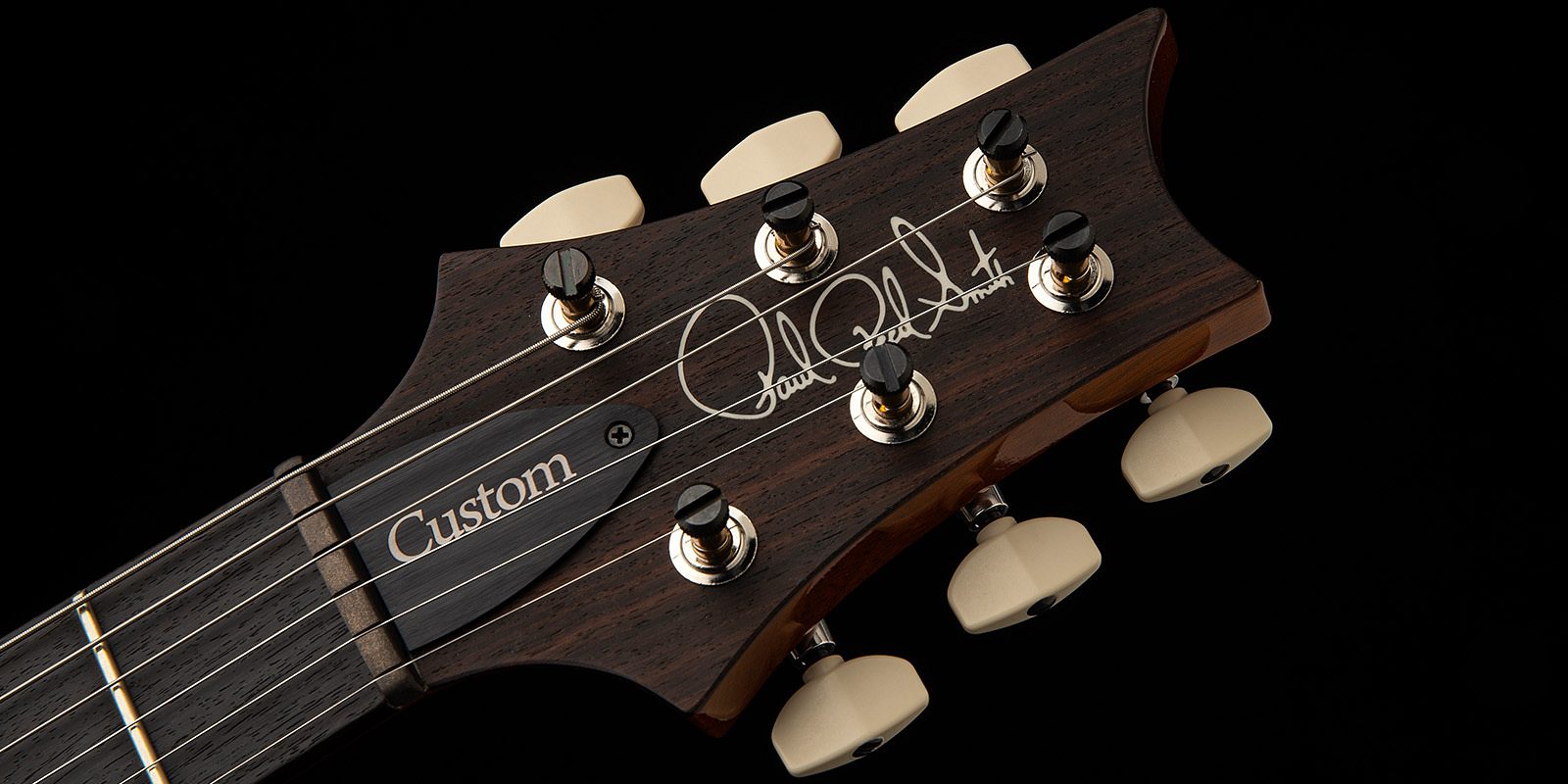

PRS Phase III Locking Tuners with Wing Buttons
Modern locking technology with vintage elegance, these lightweight tuners promote tone transfer for a louder, more resonant instrument.

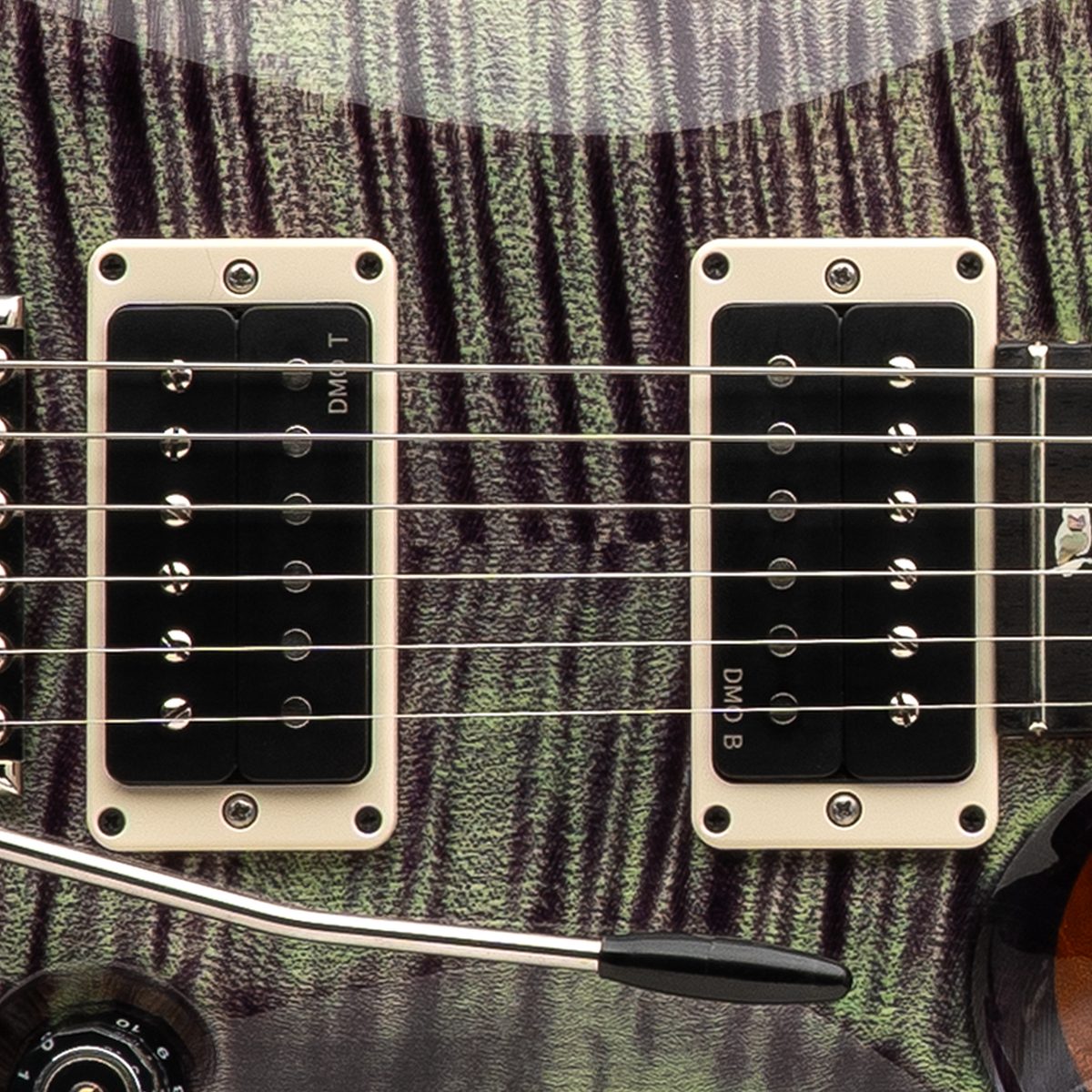

PRS DMO Pickups
“Dynamic, Musical, Open” pickups with balanced tonal range and vocal quality.
Specifications
| Body | |
| Body Construction | Solidbody |
| Top Wood | Maple |

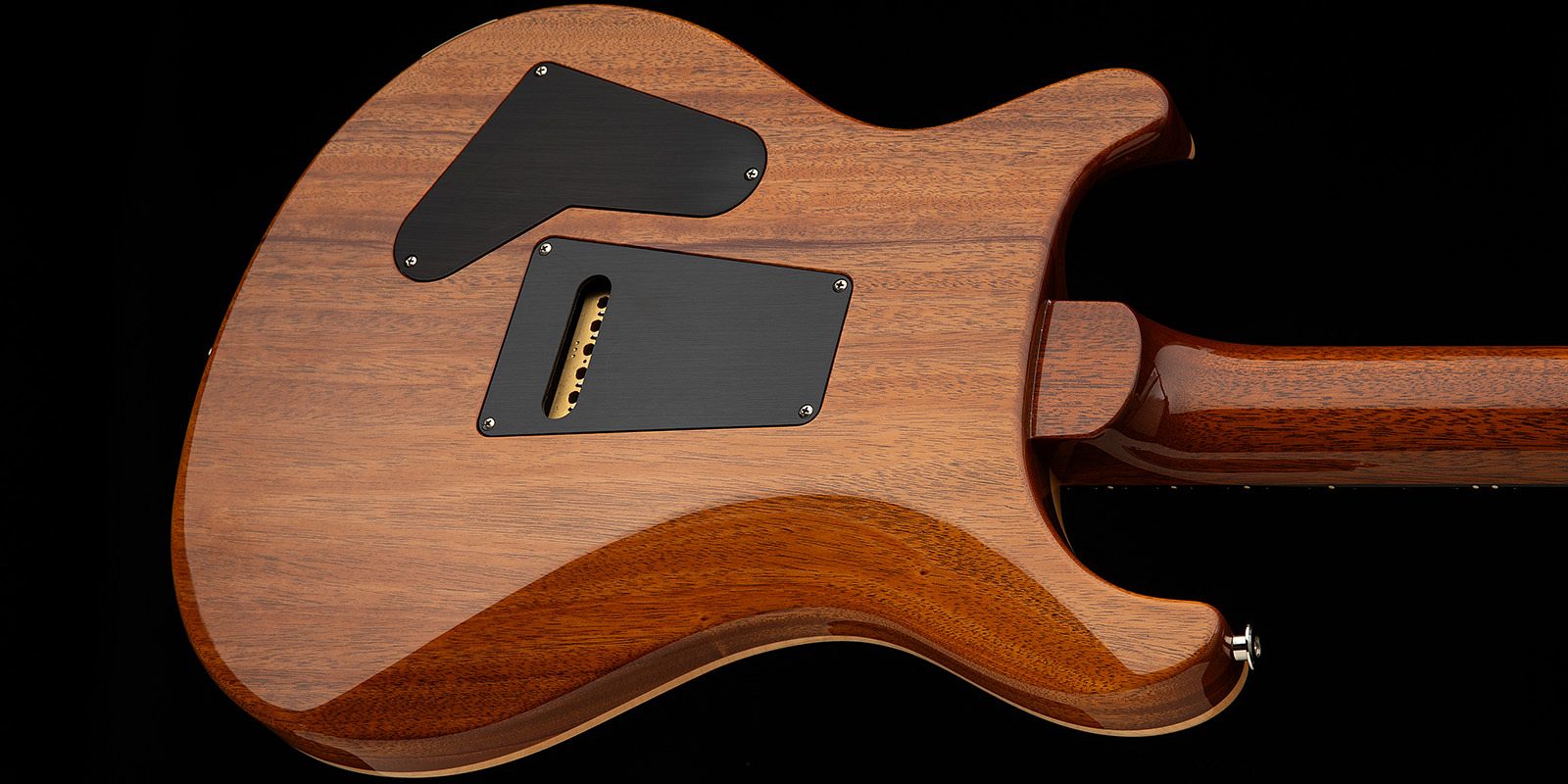

| Back Wood | Mahogany |
| Top Carve | Violin |
| Neck | |
| Number of Frets | 24 |
| Scale Length | 25" |
| Neck Wood | Mahogany |
| Neck Construction | One-Piece |
| Truss Rod | PRS Double-Acting |
| Neck Shape | Pattern Thin |
| Neck Depth at the 1/2 Fret | 53/64" |
| Neck Depth at the 12 1/2 Fret | 57/64" |
| Neck Width at the Nut | 1 11/16" |
| Neck Width at the Body | 2 1/4" |
| Fretboard Wood | Rosewood |
| Fretboard Radius | 10" |
| Fretboard Inlay | Birds |
| Headstock Logo | Signature, Inlaid |
| Neck/Body Assembly | |
| Neck/Body Assembly Type | Set |
| Finish | |
| Finish Type | High-Gloss Nitro |
| Hardware | |
| Bridge | PRS Patented Tremolo, Gen III |
| Tuners | PRS Phase III Locking Tuners with Wing Buttons |
| Hardware Type | Nickel |
| Nut | PRS |
| Truss Rod Cover | "Custom" |
| Electronics | |
| Treble Pickup | DMO |
| Bass Pickup | DMO |
| Controls | Volume and Tone Control with 5-Way Blade Pickup Switch |
| Additional Info | |
| Strings | PRS Signature 10-46 |
| Tuning | Standard (6 String): E, A, D, G, B, E |
| Case | Hardshell Case |
| Options | 10 Top with Hybrid Hardware |
Controls
Custom 24 - Controls Description
5-way blade pickup switch
Position 1 (down) - treble pickup
Position 2 - treble humbucking pickup and bass single coil Position 3 - treble and bass humbucking pickups
Position 4 - treble single coil and bass single coil
Position 5 (up) - bass pickup

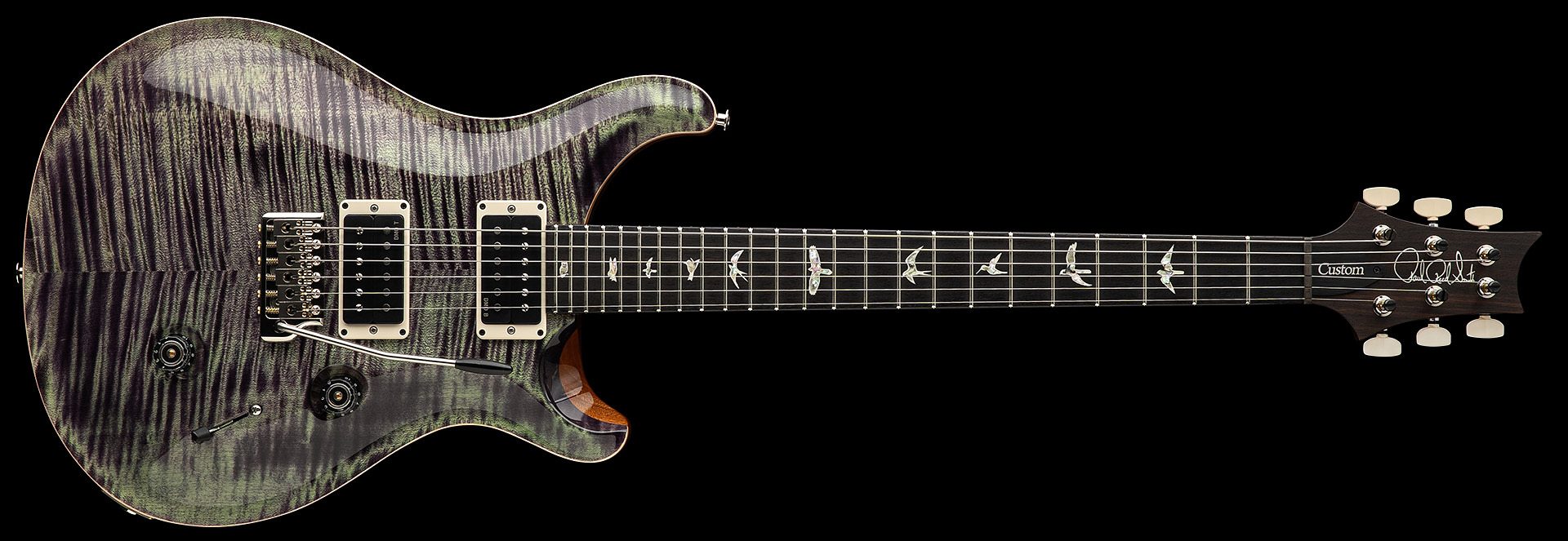

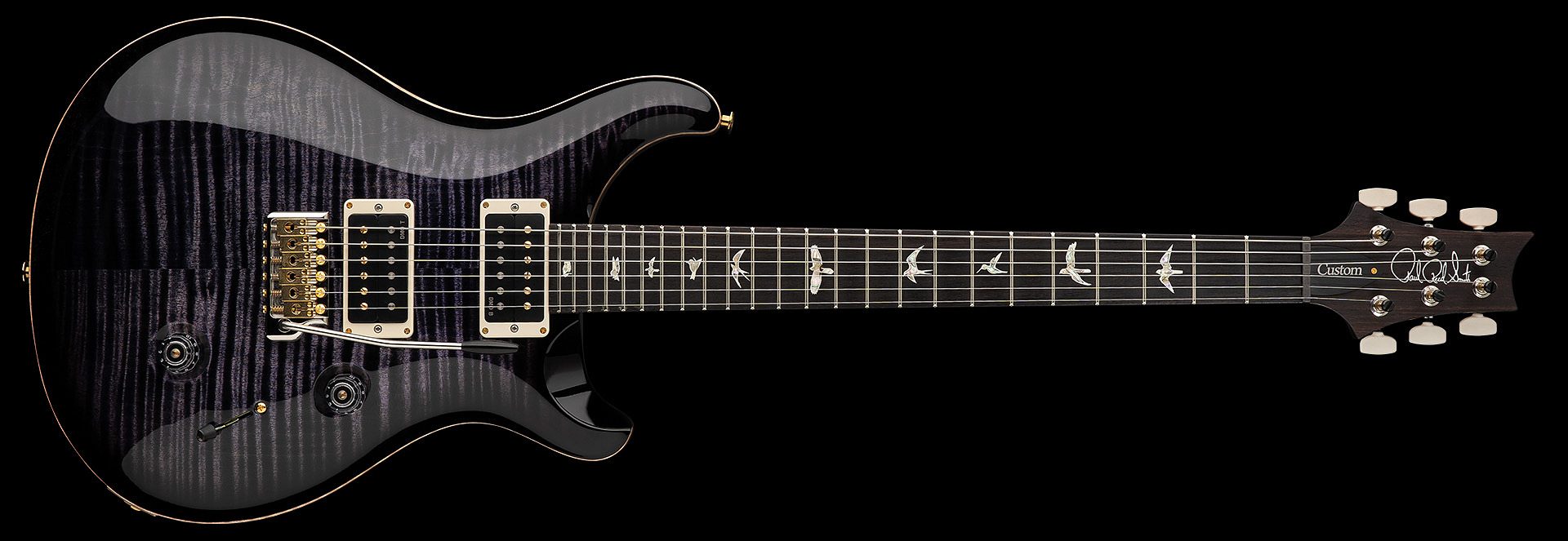

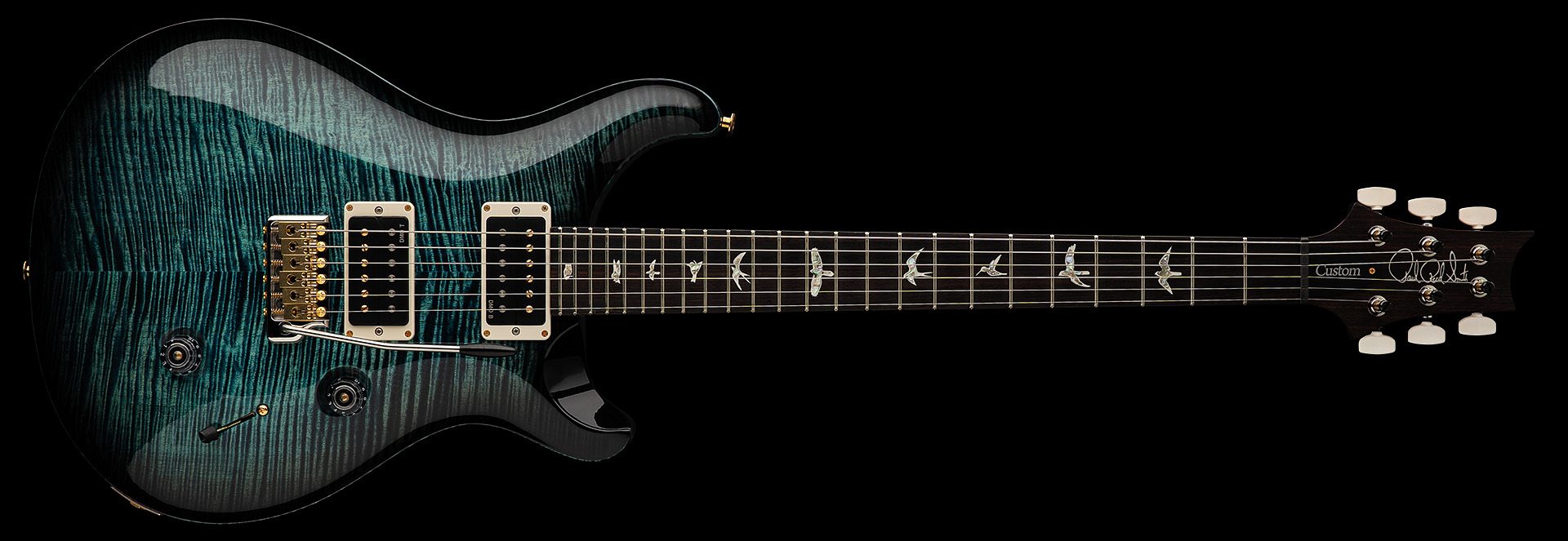

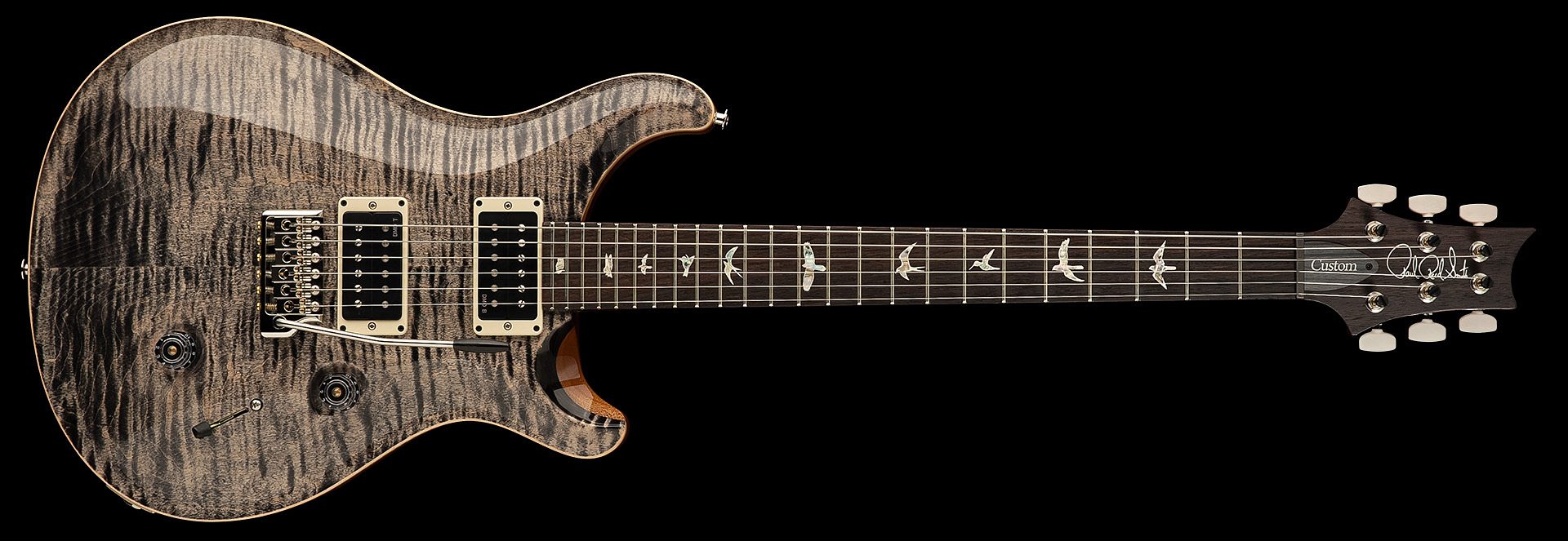

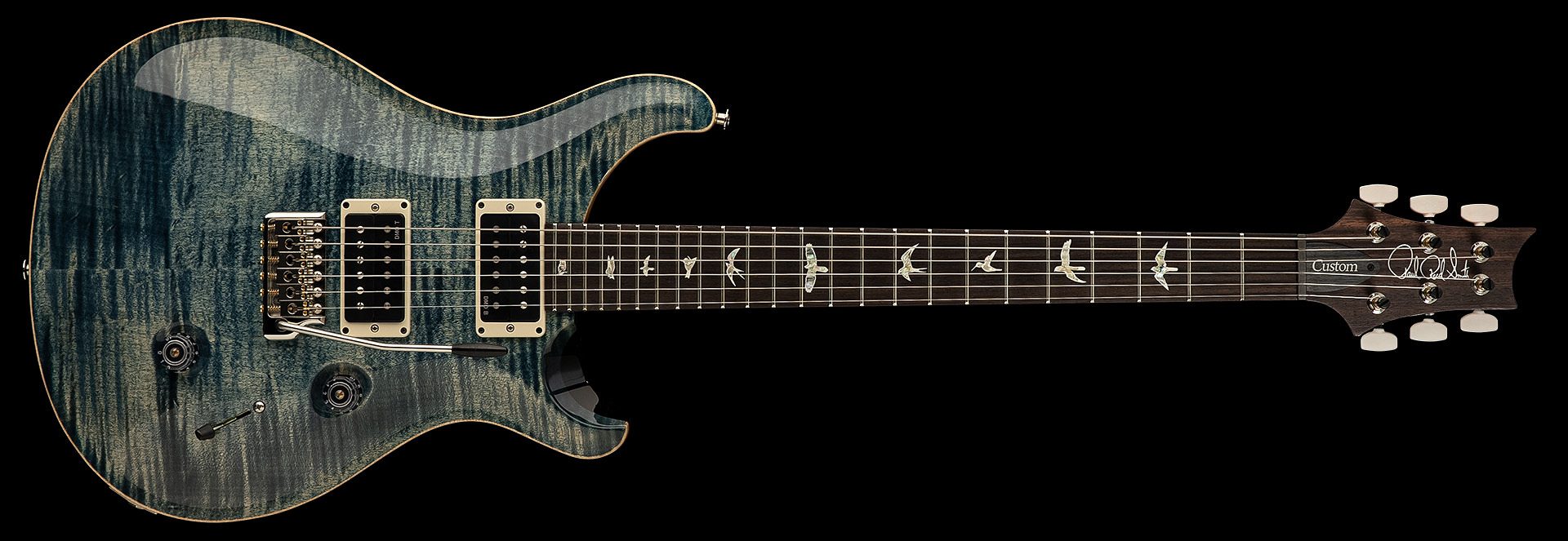

Colors

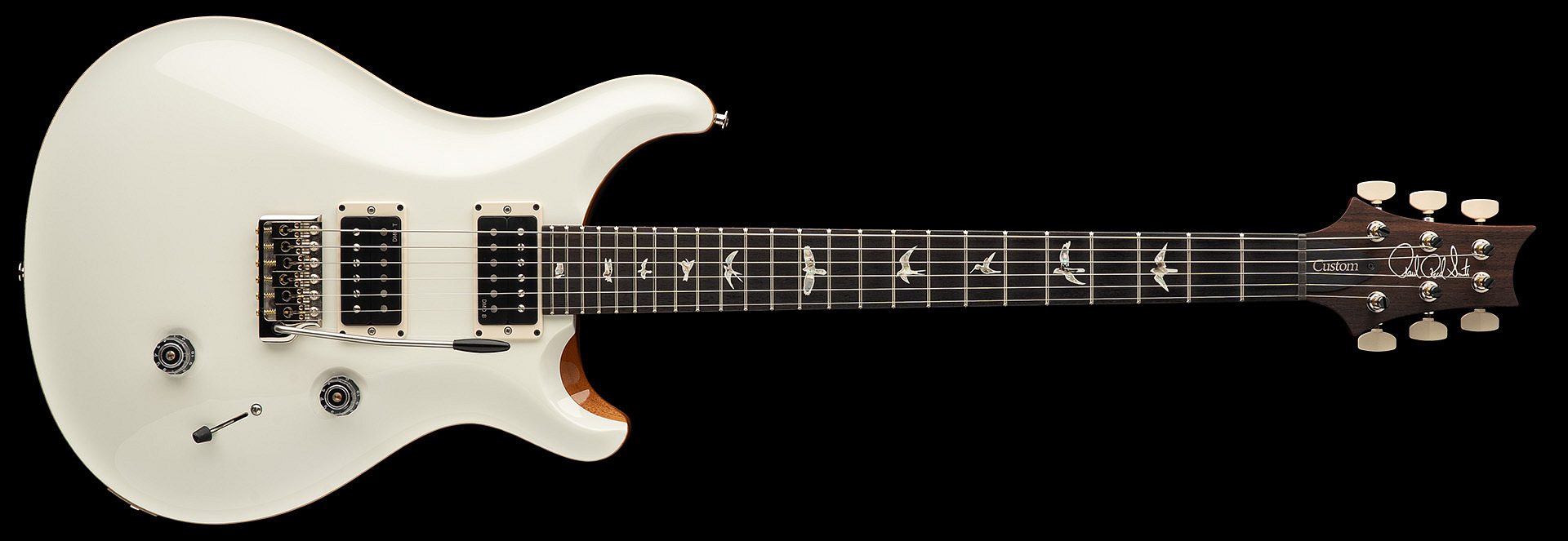

Antique White Top (Opaque Top with Natural Back)
Aurora Borealis

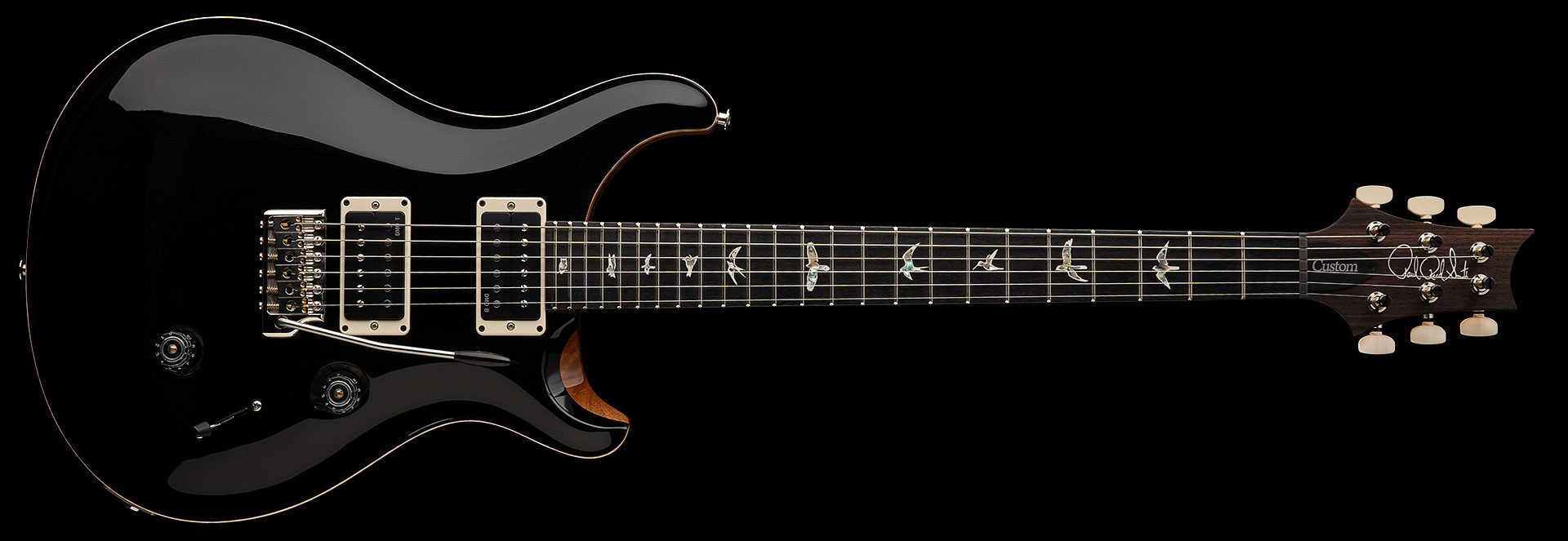

Black Top (Opaque Top with Natural Back)

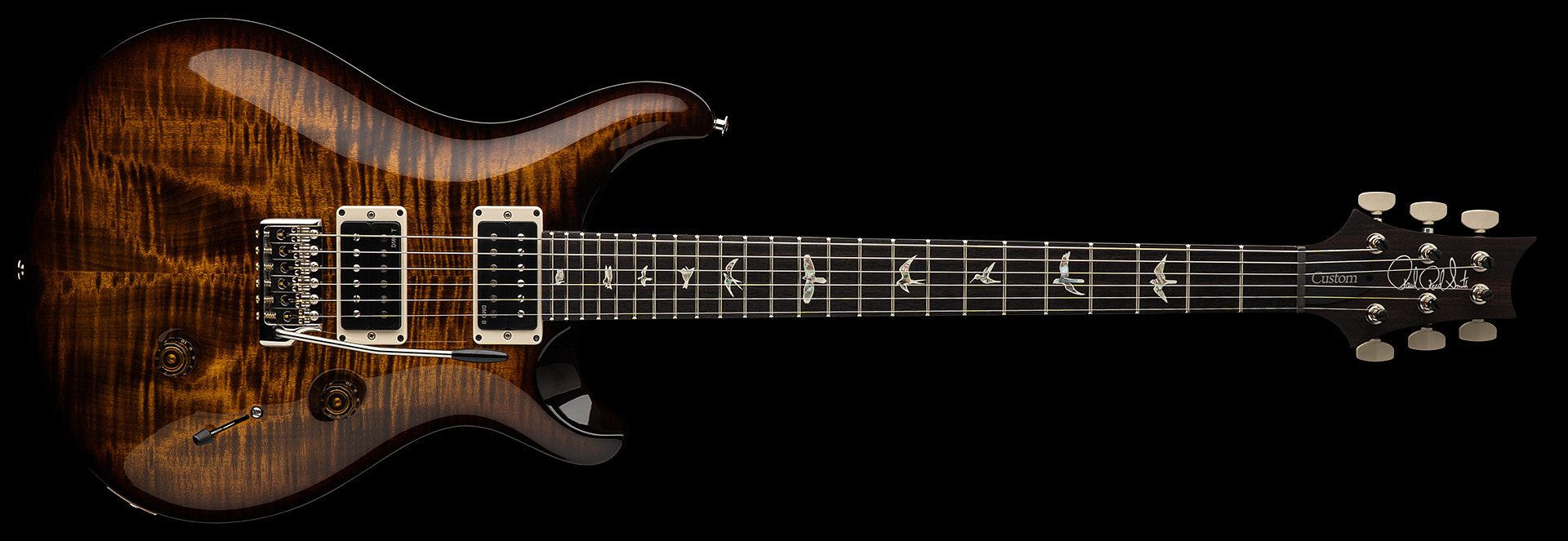

Black Gold
Black Gold Wraparound Burst
Carroll Blue
Charcoal

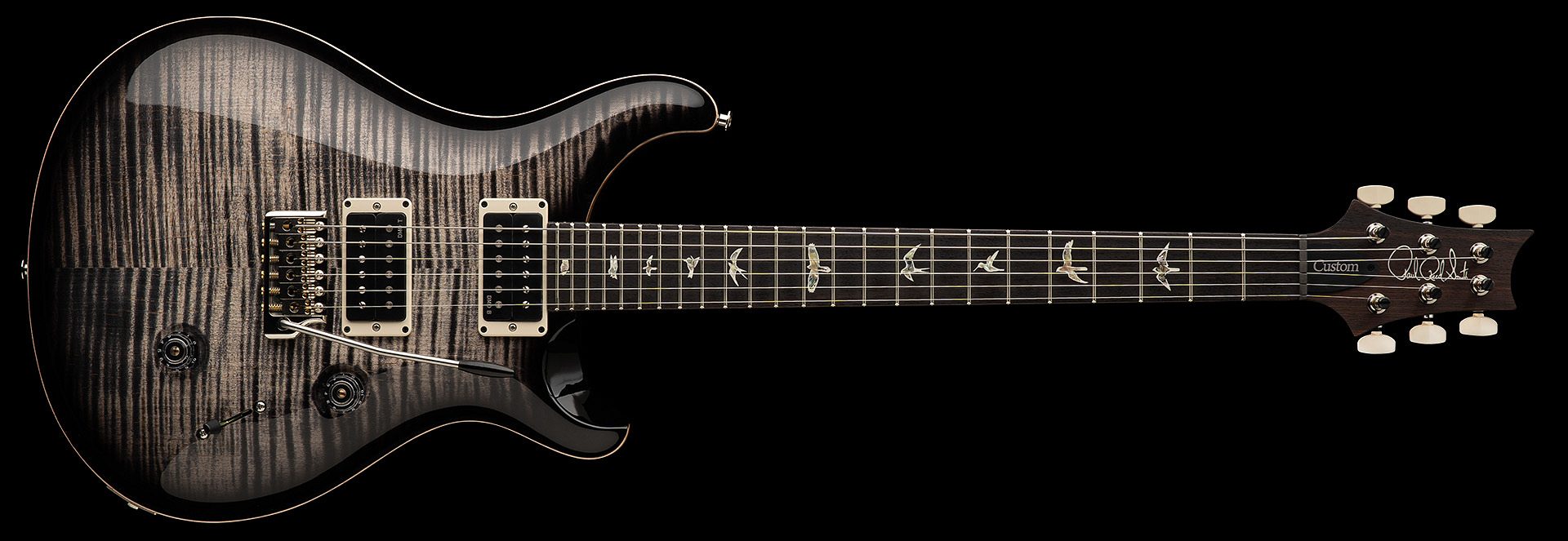

Charcoal Burst
Cobalt Smokeburst
Dark Cherry Sunburst
Faded Whale Blue
Fire Smokeburst

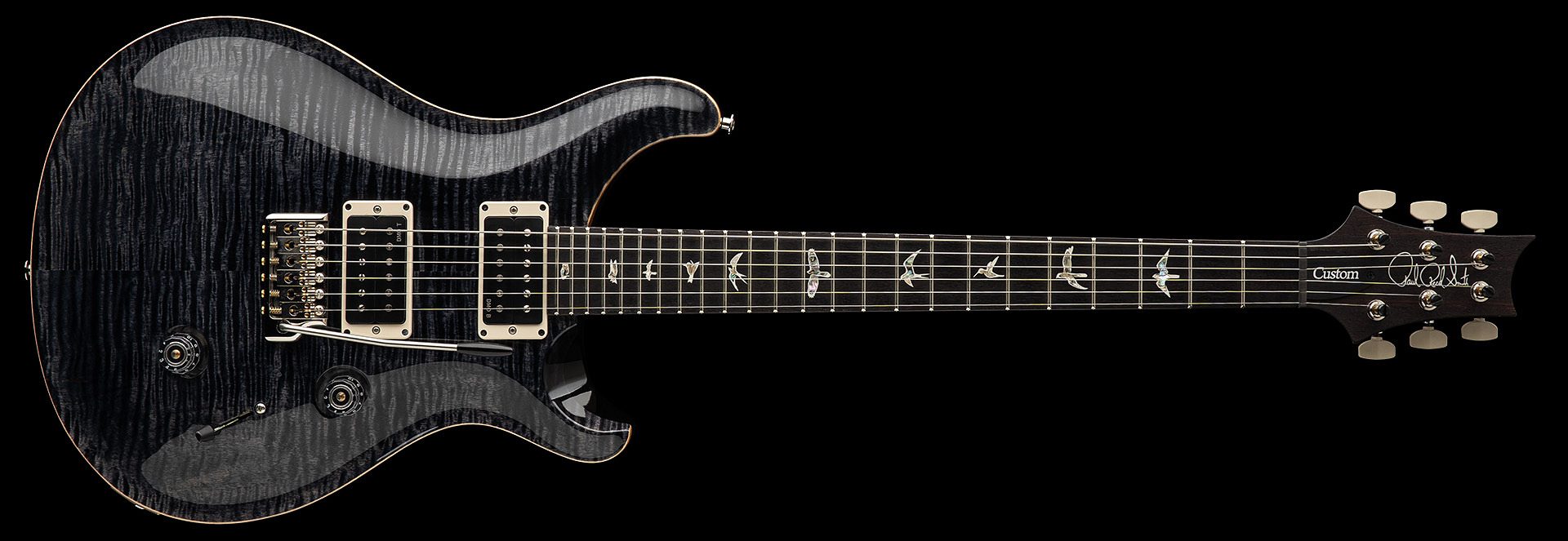

Gray Black

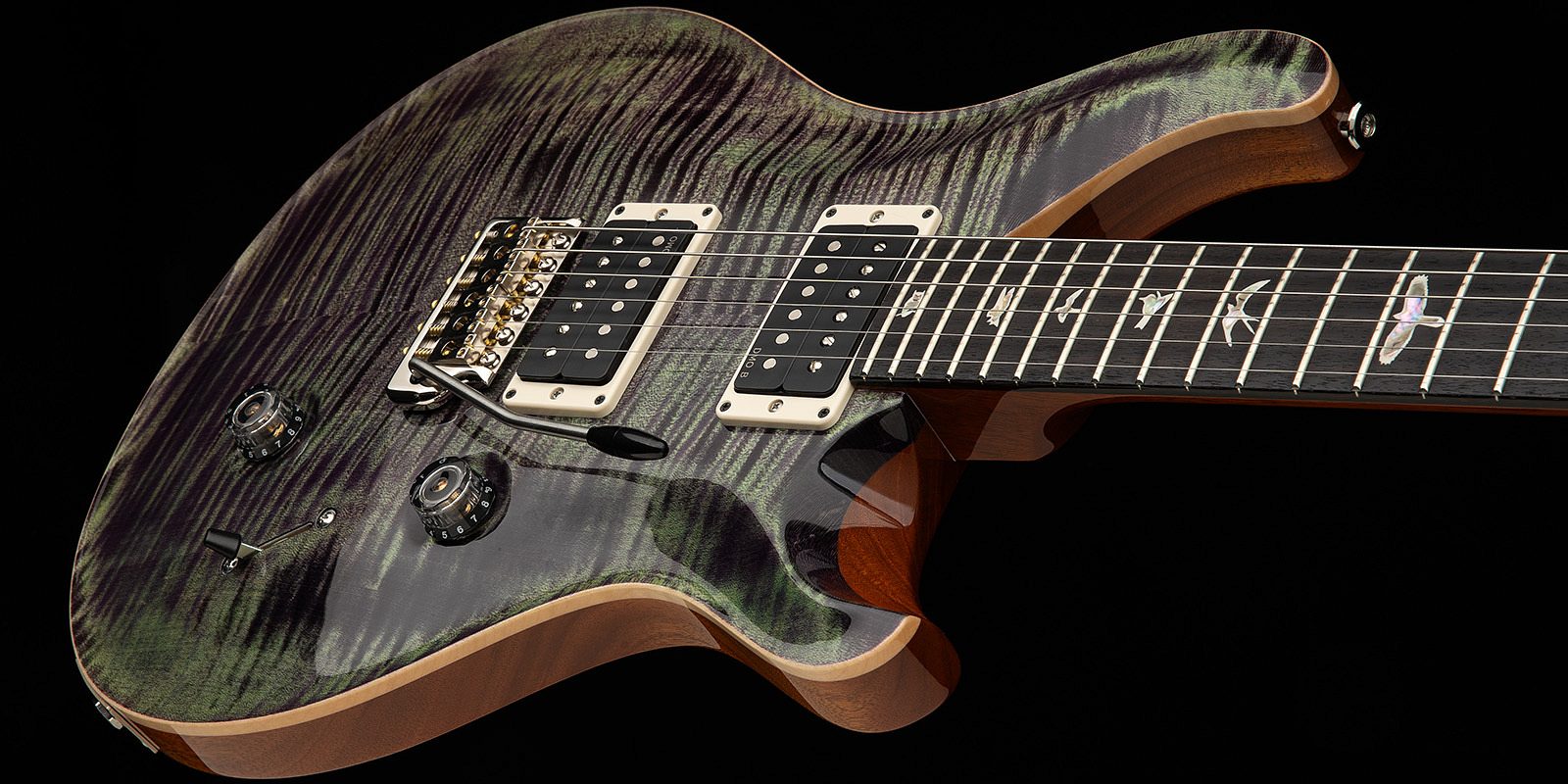

Purple Mist
